Bluetooth Low Energy (BLE) sensors are excellent at collecting environmental data close to where it matters. Many air-quality devices broadcast their readings using BLE advertisements, which keeps power consumption low and avoids the overhead of maintaining a connection. The challenge appears when you want to access that data remotely, share it with a team, or visualize trends over time.

In this tutorial project, we demonstrate a simple and transparent way to bridge that gap. A BleuIO USB dongle scans BLE advertisements from a HibouAir sensor, a lightweight Python script decodes the values, and the data is sent to Thinger.io for storage and visualization. The goal is not to build a product-specific solution, but to show how easily BLE advertisement data can be integrated into a modern cloud platform using readily available tools.

From local BLE data to remote access

BLE advertisement data is, by design, local: a sensor broadcasts data into the surrounding area, and only nearby devices can receive it. This works perfectly for local dashboards, logging, or automation running on a PC or embedded computer. However, as soon as you want to view data remotely, share readings with others, analyze trends over longer periods, or build dashboards that are accessible from anywhere, a cloud layer becomes necessary. A gateway approach solves this neatly by listening to BLE advertisements, decoding them, and forwarding the results to the cloud without requiring changes to the sensor firmware or the addition of complex SDKs. This keeps the BLE side simple while allowing the cloud to handle storage, visualization, and access control.

About Thinger.io

Thinger.io offers a generous free tier that is well suited for prototyping, demos, and proof-of-concept projects. It allows you to create devices that accept data over HTTP, store incoming measurements in data buckets, and build dashboards with charts and widgets in just a few steps.

For this project, Thinger.io acts as a remote endpoint that receives decoded air-quality data and makes it immediately visible through its web dashboard. This makes it easy to demonstrate end-to-end data flow—from BLE advertisements in the air to charts in a browser—without maintaining your own backend.

Project requirements

Hardware

• HibouAir air-quality monitor (broadcasting data via BLE advertisements)
• BleuIO Bluetooth Low Energy USB dongle

Software

• Python 3.9 or later
• pyserial Python library
• requests Python library
• Thinger.io account (free tier)

No embedded firmware development and no BLE SDKs are required.

How the project works

The HibouAir device periodically broadcasts its sensor readings inside BLE advertisement packets. BleuIO, connected to computer via USB, continuously scans for nearby BLE advertisements and filters packets that match the HibouAir identifier.

A Python gateway script reads the scan output from BleuIO, extracts the raw advertisement payload, and decodes the air-quality values such as CO2, temperature, and humidity. These decoded values are then packaged into a simple JSON object and sent to Thinger.io using an authenticated HTTP request.

Thinger.io receives the data, stores it in a bucket, and makes it available for visualization on dashboards. This entire process runs continuously, creating a real-time BLE-to-cloud data pipeline without establishing a persistent BLE connection to the sensor.

Source code

The complete source code for this project is available on GitHub. It includes the Python gateway script, configuration examples, and setup notes.

https://github.com/smart-sensor-devices-ab/bleuio_thinger_cloud/

Setting up the Thinger.io dashboard

On the Thinger.io side, the setup is straightforward. You create an HTTP device that acts as the data entry point, generate an access token for authentication, and configure a data bucket to store incoming measurements. Once the bucket is in place, dashboards can be built by adding widgets such as numeric values, gauges, or time-series charts.

Step 1: Create an HTTP Device

Go to Dashboard → Devices and create a new device.

1. Click Add Device / New Device
2. Choose HTTP Device
3. Set a clear Device ID (example: hibouair_bleuio_gateway)
4. Save

Step 2: Get the Callback URL (endpoint)

Open the device you just created and locate the callback endpoint that will receive your JSON payload.

1. Click your device (example: hibouair_bleuio_gateway)
2. Go to Callback
3. Copy the Callback URL / Endpoint URL

This is the URL your Python gateway will send data to using an HTTP POST.

Step 3: Create a Data Bucket (storage)

Buckets store your incoming time-series data and make charts/dashboard widgets easy.

1. Go to Data Buckets
2. Click Create Bucket
3. Name it something like: hibouair_air_quality
4. Save

Step 4: Link the Device Callback to the Bucket

Now tell Thinger.io to store incoming device payloads into your bucket.

1. Go back to your device: Devices → hibouair_ble_gateway
2. Open Callback settings
3. Enable storing/forwarding incoming data to a bucket
4. Select bucket: hibouair_air_quality
5. Save

Step 5: Create a Dashboard

This is where the live visualization happens.

1. Go to Dashboards
2. Click New Dashboard
3. Name it: HibouAir Live (BleuIO)
4. Save

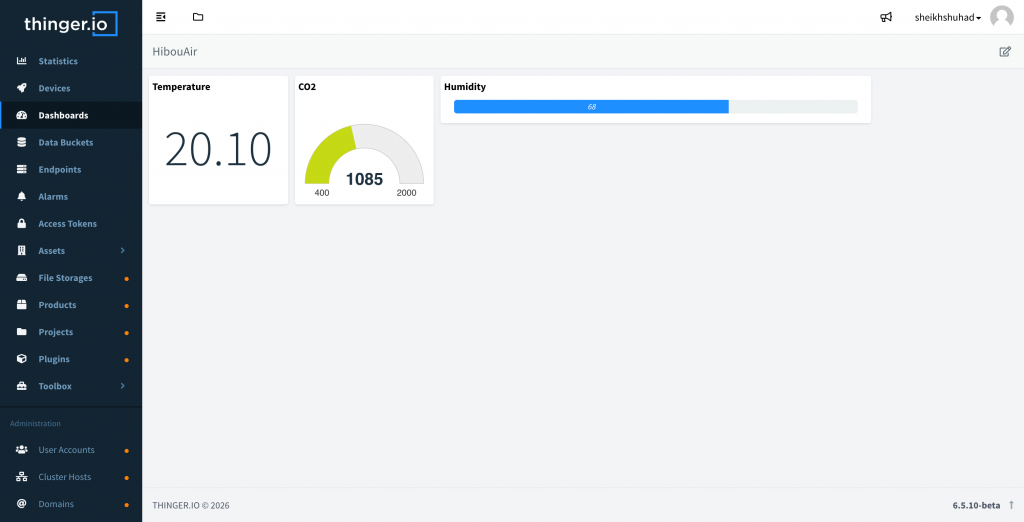

Step 6: Add widgets to visualize your data

Use the bucket as the data source for widgets.

Suggested widgets (example mapping):

• Numeric / Value widget → co2_ppm
• Gauge widget → temperature_c
• Time-series chart → humidity_rh (and optionally CO2 too)

Steps:

1. Click Add Widget
2. Choose widget type (Value, Gauge, Chart)
3. Select bucket: hibouair_air_quality
4. Choose the field (co2_ppm / temperature_c / humidity_rh)
5. Save widget
6. Arrange widgets on the dashboard

Running the gateway

After configuring the Thinger.io credentials and ensuring BleuIO is connected to the correct serial port, the project is started with a single command:

python3 gateway_thinger.py

Once running, the script scans for BLE advertisements, decodes the sensor data, and pushes updates to Thinger.io at regular intervals. Terminal output confirms successful scans and uploads, while the dashboard updates in near real time.

This project is meant to showcase an integration pattern, not to define a fixed solution. By combining BLE advertisement scanning with a simple Python gateway and a cloud platform like Thinger.io, it becomes clear how flexible this approach can be. Engineers can take this example, replace the sensor, adjust the decoder, or switch the cloud endpoint to suit their own needs.

Bluetooth Low Energy has become one of the most widely used wireless technologies for sensors, beacons, and low-power devices. From environmental monitoring and asset tracking to smart buildings and industrial systems, BLE devices are now everywhere. At the same time, edge computing has emerged as a practical response to the limitations of cloud-only architectures.

The problem with cloud-only BLE architectures

Many BLE projects start with a simple idea: scan for BLE devices, collect data, and send everything directly to the cloud. While this works for small experiments, it often breaks down in real deployments.

One common issue is latency. BLE sensors often transmit small data packets at short intervals. When every packet is sent to the cloud, even small network delays can prevent timely reactions. This becomes critical in use cases such as environmental monitoring, industrial safety, or building automation, where immediate response matters.

Another challenge is network dependency. Cloud-centric designs assume constant internet connectivity. In factories, basements, temporary installations, or remote locations, connectivity may be unreliable or unavailable. When the connection drops, data collection and decision-making stop entirely.

There is also the issue of data overload and cost. Streaming raw BLE data continuously consumes bandwidth, increases cloud storage requirements, and complicates analytics. Much of this data is often repetitive or irrelevant until a threshold or anomaly appears.

These problems highlight the need for a smarter approach—one that processes BLE data closer to where it is generated.

How edge computing changes the equation

Edge computing moves data processing from the cloud to a local system, such as an industrial PC, a small server, or a single-board computer. Instead of acting as a simple relay, the edge system analyzes data in real time, applies rules, and decides what should happen next.

For BLE applications, this means:

• Immediate reaction to sensor changes without waiting for cloud responses
• Continued operation even when internet access is lost
• Reduced data volume sent to cloud platforms
• Better control over system behavior and reliability

Edge computing does not replace the cloud. Instead, it complements it by ensuring that only meaningful, processed information is forwarded for long-term storage, visualization, or reporting.

BleuIO as a BLE gateway at the edge

BleuIO plays a key role in this architecture by acting as the BLE interface between physical devices and edge intelligence. Connected via USB, BleuIO handles scanning, connecting, and communicating with BLE devices using a simple and predictable AT-command interface.

From the perspective of the edge application, BleuIO behaves like a stable BLE modem. The application does not need to interact with complex operating-system-level BLE stacks or vendor-specific SDKs. Instead, it can focus on logic, data processing, and integration.

This design is especially useful for long-running edge services, where reliability and consistency are critical. BleuIO’s behavior remains the same across platforms, making it suitable for deployments on macOS, Linux, and Windows systems.

Typical BLE edge gateway architecture

A typical edge gateway built with BleuIO follows a clear and modular structure.

BLE sensors or devices broadcast advertisement data or expose characteristics. BleuIO scans for these devices, filters relevant data, and passes it to the host system. The edge application decodes and processes the data locally, applying thresholds, aggregation rules, or control logic. Only selected events, summaries, or alerts are then forwarded to cloud services, dashboards, or databases.

This architecture keeps the BLE layer simple and reliable while allowing the edge layer to evolve independently as system requirements grow.

Use case

Smart building and indoor monitoring

In smart building environments, BLE sensors are often used to monitor indoor conditions such as air quality, occupancy, or equipment status. A cloud-only approach can delay responses to poor conditions, especially during network congestion or outages.

Using BleuIO as an edge gateway allows the system to react immediately. The edge application can continuously monitor BLE sensor data, detect when conditions deviate from acceptable ranges, and trigger local actions. Ventilation systems, alerts, or building management integrations can respond instantly, while summarized data is still sent to cloud dashboards for long-term analysis.

This approach improves occupant comfort, reduces response time, and lowers unnecessary cloud traffic.

Industrial monitoring and local automation

Industrial environments often present challenging conditions for wireless communication and cloud connectivity. BLE sensors may be used to track machine states, environmental parameters, or asset presence.

With BleuIO at the edge, BLE data can be filtered and analyzed locally. The edge system can identify abnormal patterns, trigger maintenance alerts, or activate control systems without relying on external connectivity. This is particularly valuable for safety-critical or time-sensitive operations.

By processing data locally, industrial systems gain resilience and predictability, even in harsh or isolated environments.

Temporary and offline deployments

Not all BLE projects are permanent installations. Temporary monitoring setups, field testing, and mobile deployments often lack stable internet access.

In these scenarios, BleuIO enables fully autonomous BLE gateways. The edge system can store data locally, apply logic, and operate independently for extended periods. When connectivity becomes available, data can be synchronized with cloud platforms or exported for analysis.

This flexibility makes BleuIO suitable for research projects, pilot deployments, and remote monitoring applications.

Solving common BLE gateway challenges

Many developers struggle with BLE gateways because of unstable OS-level BLE stacks, complex APIs, and inconsistent behavior across platforms. These issues become more pronounced in long-running edge applications.

BleuIO addresses these challenges by abstracting BLE complexity behind a simple command interface. This reduces development time, improves system stability, and makes automation easier. Developers can build gateways using familiar tools and languages while maintaining full control over BLE behavior.

How this approach scales well

Using BleuIO as a BLE gateway supports incremental system growth. Projects can start with local data processing and later add cloud integration, analytics platforms, or automation layers without redesigning the BLE foundation.

Because the edge application controls what data leaves the system, it is easier to comply with bandwidth limits, privacy requirements, and operational constraints. This makes the architecture suitable for both small deployments and large, distributed systems.

BleuIO as a foundation for modern BLE edge systems

Edge computing has become essential for reliable, responsive BLE applications. By combining local processing with selective cloud integration, systems gain speed, resilience, and scalability.

BleuIO fits naturally into this model. Acting as a stable BLE gateway, it bridges the gap between low-power wireless devices and edge intelligence. Whether the goal is smart buildings, industrial monitoring, or temporary deployments, using BleuIO at the edge enables practical, future-proof BLE solutions.
