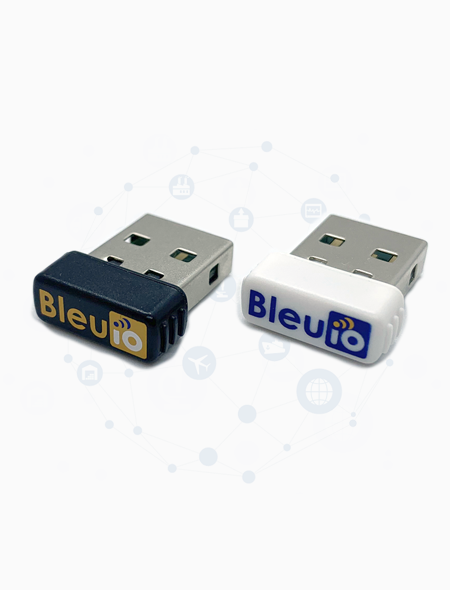

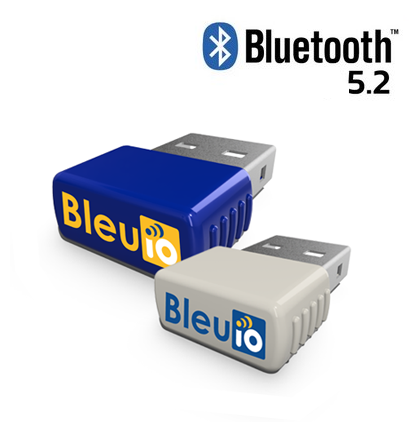

Bluetooth® low energy adapter

BleuIO

The BleuIO is a fully integrated solution, providing MCU and Bluetooth® radio in one chip, based on Dialog Semiconductor latest Bluetooth chip DA14683. The FLASH based device permits field or boot upgradable, while application is stored on FLASH memory. Custom settings can also be stored on FLASH memory or OTP for higher integrity. This device supports Windows 10, Linux and macOS. CE declaration and FCC certification ready.

The BleuIO is Bluetooth® low energy solution that can be used to create new BLE 5.0 applications in the fastest and easiest way. Just use the AT Commands available on the the device.

Product Features

Software and Tools

Comes with an integrated Ready to Use software that enable the user to easily create new BLE applications with simple AT-Commands scripts.

Bootloader

You can update the firmware or flash your own applications with the integrated bootloader of the dongle.

Security Applications

Including Cryptographic engine with an Elliptic Curve Controller (ECC), AES-256, SHA-1, SHA-256, SHA-512 and True Random Number Generator.

Certifications

CE Marking, Complies with Radio Equipment Directive 2014/53/EU and US FCC certifications.

Platform Idependant

The device is compatible with all the platforms: Windows 10, macOS, Linux.

Latest Technology

supports Bluetooth® v5.0 Low Energy and based on Dialog Semiconductor latest Bluetooth® chip DA14683

Product Specifications

BleuIO
ROLES Programmable Bluetooth Central or Peripheral. USB Device.
SECURITY Cryptographic engine with ECC, AES-256, SHA-1, SHA-256, SHA-512 and True Random Number Generator.
CONNECTIVITY Bluetooth 5.0 & USB Full Speed
POWER USB +5V
CHIP DA14683
MEMORY FLASH 8Mbit & OTP 64kB
MECHANICAL 19.2 mm (L) 16.3 mm (W), 6.2 mm (D)
ENVIRONMENTAL Temperature: -20 to +65 C
CASE MATERIAL PBT + 20% glass fiber
CERTIFICATION FCC & CE
COLORS White/Black

BleuIO Datasheet   BleuIO user manual

Order Now

BleuIO

$15.99

Get a FREE product for every 20 pcs ordered.


Total : USD 15.99
Shipping within 24 hours.

Follow our quick setup guide to make a fast peripheral or central application (or both), on our incredibly low power platform without having to develop a single line of embedded code.

For Your Business

The device can be programmed with user specific application before delivery. Proprietary logotype can also be included if needed. Custom settings can also be stored on FLASH memory or OTP for higher integrity.

You can request a custom quote and a member of our sales team will get back to you.

Request A Quote
