AT COMMANDS

Use AT commands on our Web Terminal. Click here

AT

  • Basic AT-Command.
CommandSyntax
ATAT

Example:

Default Mode
Verbose Mode
AT
OK
AT
{"C":1,"cmd":"AT"}
{"A":1,"err":0,"errMsg":"ok"}
{"E":1,"nol":3}

ATA

  • Shows/hides ASCII values from notification/indication/read responses. ATA0 hides the ASCII values, ATA1 shows the ASCII values.
CommandSyntax
ATAATA0
ATA1

Example of a notification response with and without ASCII value shown With ASCII on:

Default Mode
Verbose Mode
handle_evt_gattc_notification: conn_idx=0000 handle=0039 length=5

Value received: #Eg‰
Hex: 0x0123456789
Size: 5
{777:"0000","001f":{"ascii":"{638:{T:"00DC",H:"00EA",CO2:"01AE",IAQ:"0075",PPM:"00C8"}}","len":59}}
{777:"0000","001f":{"hex":"0x7B3633383A7B543A2230304443222C483A2230304541222C434F323A2230314145222C4941513A2230303735222C50504D3A2230304338227D7D00","len":59}}

With ASCII off:

Default Mode
Verbose Mode
handle_evt_gattc_notification: conn_idx=0000 handle=0039 length=5

Hex: 0x0123456789
Size: 5
{"777": "0000","001f": {"hex": "0x7B3633383A7B543A2230304443222C483A2230304541222C434F323A2230314145222C4941513A2230303735222C50504D3A2230304338227D7D00","len": 59}}

Example:

Default Mode
Verbose Mode
ATA0
Show ASCII Off!
ATA1
{"C":1,"cmd":"ATA1"}
{"A":1,"err":0,"errMsg":"ok"}
{"R":1,"showAscii":true}
{"E":1,"nol":4}
ATA0
{"C":2,"cmd":"ATA0"}
{"A":2,"err":0,"errMsg":"ok"}
{"R":2,"showAscii":false}
{"E":2,"nol":4}

ATB Pro

  • Put dongle in bootloader mode.
CommandSyntax
ATB

Type 'QUIT' to manually exit bootloader mode.

Example:

Default Mode
Verbose Mode
ATB
OK
Bootloader on.
>
ATB
{"C":0,"cmd":"ATB"}
{"A":0,"err":0,"errMsg":"ok"}
{"R":0,"action":"bootloader on"}
{"E":0,"nol":4}
>

ATASPS

  • Toggle between ascii and hex responses received from SPS. ATASPS0 shows hex values, ATASPS1 shows ASCII. ASCII is on by default.
CommandSyntax
ATASPSATASPS0
ATASPS1

Example of a SPS response with HEX shown and with ASCII shown

With ASCII shown:

Default Mode
Verbose Mode
# On Server:
[Received]: HELLO

# On Client:
handle_evt_gattc_notification: conn_idx=0000 handle=000d length=6
HELLO

# Client
{777:"0000","SPS":{"ascii":"TEST","len":5}}
# Server
{279:"0000","SPS":{"ascii":"TEST","len":5}}

With Hex shown:

Default Mode
Verbose Mode
# On Server:
(conn_idx=0000 len=6)
48454C4C4F00


# On Client:
(conn_idx=0000 length=6)48454C4C4F00

# Client
{777:"0000","SPS":{"hex":"0x5445535400","len":5}}
# Server
{279:"0000","SPS":{"hex":"0x5445535400","len":5}}

Example:

Default Mode
Verbose Mode
ATASPS0
Show SPS Ascii Off!
ATASPS1
{"C":3,"cmd":"ATASPS1"}
{"A":3,"err":0,"errMsg":"ok"}
{"R":3,"showSPSAscii":true}
{"E":3,"nol":4}
ATASPS0
{"C":4,"cmd":"ATASPS0"}
{"A":4,"err":0,"errMsg":"ok"}
{"R":4,"showSPSAscii":false}
{"E":4,"nol":4}

ATASSN

  • Turns on/off showing device names, if present, in scan results from AT+FINDSCANDATA and AT+SCANTARGET scans. (Off per default).
CommandSyntax
ATASSNATASSN0
ATASSN1

AT+FINDSCANDATA results with ATASSN on

Default Mode
Verbose Mode
[C1:12:32:45:65:54] (HibouAIR) Device Data [RESP]: 09094869626F75414952
{"SF":3,"addr":"C1:12:32:45:65:54","type":4,"data":"09094869626F75414952","name":"HibouAIR"}

AT+SCANTARGET results with ATASSN on

Default Mode
Verbose Mode
[C1:12:32:45:65:54] (HibouAIR) Device Data [RESP]: 09094869626F75414952
{"ST":4,"addr":"C1:12:32:45:65:54","type":4,"data":"09094869626F75414952","name":"HibouAIR"}

Example:

Default Mode
Verbose Mode
ATASSN1
Always Show Scan Name On!
ATASSN0
Always Show Scan Name Off!
ATASSN1
{"C":6,"cmd":"ATASSN1"}
{"A":6,"err":0,"errMsg":"ok"}
{"R":6,"assn":true}
{"E":6,"nol":4}
ATASSN0
{"C":7,"cmd":"ATASSN0"}
{"A":7,"err":0,"errMsg":"ok"}
{"R":7,"assn":false}
{"E":7,"nol":4}

ATASSM

  • Turns on/off showing Manufacturing Specific ID (Company ID), if present, in scan results from AT+GAPSCAN, AT+FINDSCANDATA and AT+SCANTARGET scans. (Off per default).
CommandSyntax
ATASSMATASSM0
ATASSM1

AT+GAPSCAN results with ATASSM on

Default Mode
Verbose Mode
[36] Device: [1]1B:A3:EE:2F:8F:18  RSSI: -67 [MFSID: 004C]
{"S":4,"rssi":-67,"mfsid":"004C","addr":"[1]1B:A3:EE:2F:8F:18"}

AT+FINDSCANDATA results with ATASSM on

Default Mode
Verbose Mode
[68:0E:8E:2E:F2:8A] [MFSID: 004C] Device Data [ADV]: 02011A020A0C0CFF4C00100112334455667788
{"SF":5,"addr":"68:0E:8E:2E:F2:8A","type":0,"mfsid":"004C","data":"02011A020A0C0CFF4C00100112334455667788"}

AT+SCANTARGET results with ATASSM on

Default Mode
Verbose Mode
[68:0E:8E:2E:F2:8A] [MFSID: 004C] Device Data [ADV]: 02011A020A0C0CFF4C00100112334455667788
{"ST":6,"addr":"68:0E:8E:2E:F2:8A","type":0,"mfsid":"004C","data":"02011A020A0C0CFF4C00100112334455667788"}

Example:

Default Mode
Verbose Mode
ATASSM1
Always Show Scan MFSID On!
ATASSM0
Always Show Scan MFSID Off!
ATASSM1
{"C":0,"cmd":"ATASSM1"}
{"A":0,"err":0,"errMsg":"ok"}
{"R":0,"assm":true}
{"E":0,"nol":4}
ATASSM0
{"C":1,"cmd":"ATASSM0"}
{"A":1,"err":0,"errMsg":"ok"}
{"R":1,"assm":false}
{"E":1,"nol":4}

ATDS

  • Turns auto discovery of services when connecting on/off. ATDS0 off, ATDS1 on. On by default. This command can be used in both central and peripheral role.
CommandSyntax
ATDSATDS0
ATDS1

Example:

Default Mode
Verbose Mode
ATDS0
Auto discover Services Off!
ATDS1
{"C":5,"cmd":"ATDS1"}
{"A":5,"err":0,"errMsg":"ok"}
{"R":5,"autoDiscoverSvc":true}
{"E":5,"nol":4}
ATDS0
{"C":6,"cmd":"ATDS0"}
{"A":6,"err":0,"errMsg":"ok"}
{"R":6,"autoDiscoverSvc":false}
{"E":6,"nol":4}

ATE

  • Turn echo on/off. (On per default).
CommandSyntax
ATEATE0
ATE1

Example:

Default Mode
Verbose Mode
ATE0
ECHO OFF
ATE0
{"C":7,"cmd":"ATE0"}
{"A":7,"err":0,"errMsg":"ok"}
{"R":7,"showEcho":false}
{"E":7,"nol":4}
{"C":8,"cmd":"ATE1"}
{"A":8,"err":0,"errMsg":"ok"}
{"R":8,"showEcho":true}
{"E":8,"nol":4}

ATES Pro

  • Toggles showing extended scan results on/off. Off by default.
CommandSyntax
ATESATES=0
ATES=1

Here comes more text explaining the command.

Example:

Default Mode
Verbose Mode
ATES=0
OK
ATES=1
OK
ATES=0
{"C":12,"cmd":"ATES=0"}
{"A":12,"err":0,"errMsg":"ok"}
{"E":12,"nol":3}
ATES=1
{"C":13,"cmd":"ATES=1"}
{"A":13,"err":0,"errMsg":"ok"}
{"E":13,"nol":3}

ATEW

  • Turn WRITTEN DATA echo on/off after GATTCWRITE commands. (On per default).
CommandSyntax
ATEWATEW0
ATEW1


Commands affected
AT+GATTCWRITE
AT+GATTCWRITEB
AT+GATTCWRITEWR
AT+GATTCWRITEWRB

Instead of response for AT+GATTCWRITE & AT+GATTCWRITEWR

DATA WRITTEN: <data>

or for AT+GATTCWRITEB & AT+GATTCWRITEWRB

DATA WRITTEN: <data>
Size: <size>

It will instead acknowledge that the command has been accepted with "DATA WRITTEN!".
An example using AT+GATTCWRITEWRB with GATTC WRITE ECHO OFF (ATEW0):

AT+GATTCWRITEWRB=001B 0101
DATA WRITTEN!


Example:

Default Mode
Verbose Mode
ATEW0
GATTC WRITE ECHO OFF
ATEW1
{"C":10,"cmd":"ATEW1"}
{"A":10,"err":0,"errMsg":"ok"}
{"R":10,"showGattcWriteEcho":true}
{"E":10,"nol":4}
ATEW0
{"C":11,"cmd":"ATEW0"}
{"A":11,"err":0,"errMsg":"ok"}
{"R":11,"showGattcWriteEcho":false}
{"E":11,"nol":4}

ATI

  • Device information query. Returns firmware version, hardware type and unique organization identifier.
CommandSyntax
ATIATI

Example:

Default Mode
Verbose Mode
ATI
Smart Sensor Devices
DA14683
Smart USB Dongle
Firmware Version: 1.1.0

Peripheral role

Not Connected

Not Advertising
ATI
{"C":12,"cmd":"ATI"}
{"A":12,"err":0,"errMsg":"ok"}
{"R":12,"dev":"Smart Sensor Devices","hw":"DA14683","name":"BleuIO"}
{"R":12,"fwVer":"2.1.5b","gap_role:"peripheral"}
{"R":12,"connected":false,"advertising":false}
{"E":12,"nol":6}

ATR

  • Trigger platform reset.
CommandSyntax
ATRATR

Example:

Default Mode
Verbose Mode
ATR
OK
ATR
{"C":14,"cmd":"ATR"}
{"A":14,"err":0,"errMsg":"ok"}
{"R":14,"action":"restart"}
{"E":14,"nol":4}

ATV

  • Turn VERBOSE mode on/off. (Off per default).
CommandSyntax
ATVATV0
ATV1


Changes the format for all the BleuIO's output. See the VERBOSE Mode information page for more details. Example:

Default Mode
Verbose Mode
ATV1
VERBOSE ON
ATV0
{"C":13,"cmd":"ATV0"}
{"A":13,"err":0,"errMsg":"ok"}
{"R":13,"verboseOn":false}
{"E":13,"nol":4}
ATV1
VERBOSE ON

AT+ADVEXTPARAM Pro

  • Sets advertising parameters for extended advertising.
CommandSyntax
AT+ADVEXTPARAMAT+ADVEXTPARAM=handle=parameters
AT+ADVEXTPARAM
OrderParametersInput TypeSpan
1Advertising handleUnsigned Integer0 - 1
2GAP discoverability modeUnsigned Integer0 - 3
3Advertising PropertiesUnsigned Integer or String1-127 or 'C' - 'CSDHLAT'
4Min Adv IntervalUnsigned Integer32 - 65535
5Max Adv IntervalUnsigned Integer32 - 65535
6Adv Channel MapUnsigned Integer1 - 7
7Local Addr TypeUnsigned Integer0 - 1
8Filt PolicyUnsigned Integer0 - 1
9TX PowerSigned Integer-52 - 20
10Primary PHYUnsigned Integer0 - 1
11Secondary Max Event SkipUnsigned Integer0 - 255
12Secondary PHYUnsigned Integer0 - 2
13SIDUnsigned Integer0 - 15
14Enable Scan Req NotiUnsigned Integer0 - 1
15(Optional)Peer Addr TypeString'public' or 'private'
16(Optional)Peer AddressAddress String'00:00:00:00:00:00' - 'FF:FF:FF:FF:FF:FF'

Handle

Parameters ValueMeaning
0 - 1Which Advertisings set is used

GAP discoverability mode

Parameters ValueMeaning
0Non-Discoverable mode
1General-Discoverable mode
2Limited-Discoverable mode
3Broadcaster mode

Advertising Properties

Parameters ValueMeaning
(1 << 0)(C) Advertising is connectable
(1 << 1)(S) Advertising is scannable
(1 << 2)(D) Advertising is directed
(1 << 3)(H) Advertising is high duty connectable (<= 3.75 ms advertising interval)
(1 << 4)(L) Advertising is legacy
(1 << 5)(A) Advertising is anonymous (Non-Connectable, Non-Scannable, EXT ADV only)
(1 << 6)(T) Include TxPower in the extended header of at least one advertising PDU (EXT ADV only)

Several properties can be combined.
For example: (1 << 0) | (1 << 1) | (1 << 2) = 7

Min & Max Adv Interval

Parameters ValueMeaning
32 - 65535Advertising interval in miliseconds

Adv Channel Map

Parameters ValueMeaning
(1 << 0)Advertising channel 37 is used
(1 << 1)Advertising channel 38 is used
(1 << 2)Advertising channel 39 is used

Several Channel Maps can be combined.
For example: (1 << 0) | (1 << 1) | (1 << 2) = 7

Local Addr Type

Parameters ValueMeaning
0Public Address Type
1Private Address Type

Filt Policy

Parameters ValueMeaning
0Allow all scan and connect requests
1Allow all connect requests. Scan requests are accepted only from whitelist devices.
2Allow all scan requests. Connect requests are accepted only from whitelist devices.
3Allow scan and connect requests only from whitelist devices

TX Power

Parameters ValueMeaning
-52 - 20TX Power in dBm
127No preference

Primary PHY & Secondary PHY

Parameters ValueMeaning
0No PHY
1Bit rate of 1 megabit per second (Mb/s)
2Allow all scan requests. Connect requests are accepted only from whitelist devices.
3Bit rate of 2 megabit per second (Mb/s) (Only for Secondary PHY)

Secondary Max Event Skip

Parameters ValueMeaning
0No events shall be skipped (EXT ADV only)
1 - 255Maximum advertising events the Controller can skip (EXT ADV only)

SID

Parameters ValueMeaning
0 - 15Advertising SID (EXT ADV only)

Enable Scan Req Noti [Not Implemented]

Parameters ValueMeaning
0Disable scan request notifications on scannable advertising
1Enable scan request notifications on scannable advertising

Example:

Default Mode
Verbose Mode
AT+ADVEXTPARAM=0=1=19=160=320=7=0=0=0=1=0=1=0=0
OK

AT+ADVEXTPARAM
OK
HANDLE: 1
mode: 1
properties: 19 (CSL)
primary_intv_min: 160
primary_intv_max: 320
primary_channel_map: 7
local_addr_type: 0
filt_policy: 0
tx_power: 0
primary_phy: 1
secondary_max_event_skip: 0
secondary_phy: 1
sid: 0
scan_req_notif_enable: 0
peer_address: public, 00:00:00:00:00:00
AT+ADVEXTPARAM=0=1=19=160=320=7=0=0=0=1=0=1=0=0
{"C":1,"cmd":"AT+ADVEXTPARAM=0=1=19=160=320=7=0=0=0=1=0=1=0=0"}
{"A":1,"err":0,"errMsg":"ok"}
{"E":1,"nol":3}
AT+ADVEXTPARAM
{"C":4,"cmd":"AT+ADVEXTPARAM"}
{"A":4,"err":0,"errMsg":"ok"}
{"R":4,"info":"ext adv params","handle":01}
{"R":4,"mode":1,"prop":"19 (CSL)","p_intv_min":160,"p_intv_max":320,"p_chnl_map":7,"l_addr_t":0,"filt_pol":0}
{"R":4,"tx_power":0,"p_phy":1,"s_max_event_skip":0,"s_phy":1,"sid":0,"scan_req_notif_enable":0,"peer_address":"public, 00:00:00:00:00:00"}
{"E":4,"nol":6}

AT+ADVEXTSTART Pro

  • Sets extended advertising data and/or scan response data and starts extended advertising. AT+ADVEXTPARAM need to be run first to create an advertising set.
CommandSyntax
AT+ADVEXTSTARTAT+ADVEXTSTART=handle=Adv Data=Scan Resp Data

Handle

Parameters ValueMeaning
0 - 1Which Advertisings set is used

Adv & Scan Response Data

Parameters ValueMeaning
Hex string format: xxxxxxxxxxData

Max Adv Data Length

Length (B)Advertising Properties Conditions
1650Not Legacy, Not Connectable and Not Scannable
242Not Legacy, Not Scannable and Not Directed
236Not Legacy and Not Scannable
28Legacy, Connectable, Scannable and Not Directed
31Legacy, Not Connectable and Not Directed

In all other cases, Adv Data should be set to -

Max Scan Resp Data Length

Length (B)Advertising Properties Conditions
1650Scannable, Not Legacy, Not Connectable
28Scannable, Legacy, Connectable and Not Directed
31Scannable, Legacy, Not Connectable and Not Directed

In all other cases, Scan Resp Data should be set to -

Example:

Default Mode
Verbose Mode
AT+ADVEXTSTART=0=16094469616c6f672041445620657874656e73696f6e7316ff4469616c6f672041445620657874656e73696f6e73=-
Advertising Handle: 0 Adv Data Len: 46 Scan Resp Len: 0 Duration: 0 Max Adv Evts: 0 Data Fragment Pref: 0

ADVERTISING...
AT+ADVEXTSTART=0=16094469616c6f672041445620657874656e73696f6e7316ff4469616c6f672041445620657874656e73696f6e73=-
{"C":6,"cmd":"AT+ADVEXTSTART=0=16094469616c6f672041445620657874656e73696f6e7316ff4469616c6f672041445620657874656e73696f6e73=-"}
{"A":6,"err":0,"errMsg":"ok"}
{"R":6,"evt":{"action":"advertising"}}
{"R":6,"handle":0,"advDataLen":46,"rspDataLen":0}
{"R":6,"duration":0,"maxAdvEvents":0,"dataFragmentPref":0}
{"E":6,"nol":6}

AT+ADVEXTUPD Pro

  • Sets extended advertising data and/or scan response data when advertising. AT+ADVEXTPARAM need to be run first to create an advertising set.
CommandSyntax
AT+ADVEXTUPDAT+ADVEXTUPD=handle=Adv Data=Scan Resp Data

Handle

Parameters ValueMeaning
0 - 1Which Advertisings set is used

Adv & Scan Response Data

Parameters ValueMeaning
Hex string format: xxxxxxxxxxData

Max Adv Data Length

Length (B)Advertising Properties Conditions
1650Not Legacy, Not Connectable and Not Scannable
242Not Legacy, Not Scannable and Not Directed
236Not Legacy and Not Scannable
28Legacy, Connectable, Scannable and Not Directed
31Legacy, Not Connectable and Not Directed

In all other cases, Adv Data should be set to -

Max Scan Resp Data Length

Length (B)Advertising Properties Conditions
1650Scannable, Not Legacy, Not Connectable
28Scannable, Legacy, Connectable and Not Directed
31Scannable, Legacy, Not Connectable and Not Directed

In all other cases, Scan Resp Data should be set to -

Example:

Default Mode
Verbose Mode
AT+ADVEXTUPD=0=16094469616c6f672041445620657874656e73696f6e7316ff4469616c6f672041445620657874656e73696f8383=-
OK
AT+ADVEXTUPD=0=16094469616c6f672041445620657874656e73696f6e7316ff4469616c6f672041445620657874656e73696f8383=-
{"C":8,"cmd":"AT+ADVEXTUPD=0=16094469616c6f672041445620657874656e73696f6e7316ff4469616c6f672041445620657874656e73696f8383=-"}
{"A":8,"err":0,"errMsg":"ok"}
{"E":8,"nol":3}

AT+ADVDATA

  • Sets or queries the advertising data. Data must be provided as hex string. The content will take effect only after advertising is restarted.
    If you want to send several data types separate it with a space.
CommandSyntax
AT+ADVDATA
AT+ADVDATA=xx:xx:xx:xx:xx:xx
AT+ADVDATA=(xx:xx:xx:xx) (xx:xx:xx:xx:xx)

Example:

Default Mode
Verbose Mode
AT+ADVDATA=04:09:43:41:54
OK

ADVERTISING DATA: 0409434154
AT+ADVDATA
{"C":0,"cmd":"AT+ADVDATA"}
{"A":0,"err":0,"errMsg":"ok"}
{"R":0,"adv":"03FF5B071107B75C49D204A34071A0B535853EB08307000000000000000000"}
{"E":0,"nol":4}
AT+ADVDATA=04:09:43:41:54
{"C":1,"cmd":"AT+ADVDATA=04:09:43:41:54"}
{"A":1,"err":0,"errMsg":"ok"}
{"R":1,"adv":"04094341540000000000000000000000000000000000000000000000000000"}
{"E":1,"nol":4}

AT+ADVDATAI

  • Sets advertising data in a way that lets it be used as an iBeacon.
CommandSyntax
AT+ADVDATAIAT+ADVDATAI=(UUID)(MAJOR)(MINOR)(TX)

Example:

Default Mode
Verbose Mode
AT+ADVDATAI=5f2dd896-b886-4549-ae01-e41acd7a354a0203010400
OK
iBeacon created with uuid: 5f2dd896-b886-4549-ae01-e41acd7a354a
AT+ADVDATAI=5f2dd896-b886-4549-ae01-e41acd7a354a0203010400
{"C":2,"cmd":"AT+ADVDATAI=5f2dd896-b886-4549-ae01-e41acd7a354a0203010400"}
{"A":2,"err":0,"errMsg":"ok"}
{"R":2,"uuid":"5f2dd896-b886-4549-ae01-e41acd7a354a"}
{"E":2,"nol":4}

AT+ADVSTART

  • Starts advertising. Advertising interval can optionally be specified in milliseconds (100 to 3000ms). Time_ms controlls how for how long the dongle will advertise. Set to 0 for unlimited. Returns ERROR if advertising is already active or if the device is in central role.
CommandSyntax
AT+ADVSTARTAT+ADVSTART
AT+ADVSTART=(mode);(intv_min);(intv_max);(time_ms);

Supported modes:

CodeMode
0:Non-connectable mode
1:Undirected mode
2:Directed mode
3:Directed Low Duty Cycle mode

Example:

Default Mode
Verbose Mode
AT+ADVSTART=1;200;300;20;
Advertising type: GAP_CONN_MODE_UNDIRECTED Advertising interval minimum: 200 maximum: 300

ADVERTISING...
{"C":3,"cmd":"AT+ADVSTART"}
{"A":3,"err":0,"errMsg":"ok"}
{"R":3,"action":"advertising"}
{"R":3,"advType":"GAP_CONN_MODE_UNDIRECTED","intvMin":"1100","intvMax":"1100"}
{"E":3,"nol":5}
AT+ADVSTART=1;200;300;20;
{"C":16,"cmd":"AT+ADVSTART=1;200;300;20;"}
{"A":16,"err":0,"errMsg":"ok"}
{"R":16,"action":"advertising"}
{"R":16,"advType":"GAP_CONN_MODE_UNDIRECTED","intvMin":"200","intvMax":"300"}
{"E":16,"nol":5}

AT+ADVSTOP

  • Stops advertising. Returns ERROR if not already advertising.
CommandSyntax
AT+ADVSTOPAT+ADVSTOP

Example:

Default Mode
Verbose Mode
AT+ADVSTOP
STOPPING ADVERTISING...

ADVERTISING STOPPED.
{"C":4,"cmd":"AT+ADVSTOP"}
{"A":4,"err":0,"errMsg":"ok"}
{"R":4,"info":"stopping advertising"}
{"E":4,"nol":4}
{260:"FFFF","action":"advertising stopped"} # <--- Event

AT+ADVRESP

  • Sets or queries scan response data. Data must be provided as hex string. Changes to take effect after restart of advertising.
CommandSyntax
AT+ADVRESP
AT+ADVRESP=(xx:xx:xx:xx:xx:xx:xx)

Example:

Default Mode
Verbose Mode
AT+ADVRESP=04:09:43:41:54
OK

RESPONSE DATA: 0409434154
{"C":5,"cmd":"AT+ADVRESP"}
{"A":5,"err":0,"errMsg":"ok"}
{"R":5,"rsp":"1109426C6575494F0000000000000000000000000000000000000000000000"}
{"E":5,"nol":4}
AT+ADVRESP=04:09:43:41:54
{"C":6,"cmd":"AT+ADVRESP=04:09:43:41:54"}
{"A":6,"err":0,"errMsg":"ok"}
{"R":6,"adv":"0409434154"}
{"E":6,"nol":4}

AT+AUTOEXEC

  • Sets or displays up to 20 commands that will be run upon the BleuIO starting up.
CommandSyntax
AT+AUTOEXECAT+AUTOEXEC
or
AT+AUTOEXEC=<cmd>

Max command lenght is currently set at 255 characters.

If the command added in the auto execute (AUTOEXEC) list caused an error that resulted in an unexpected reboot (or if adding the reset command ATR) all commands in the list will be removed to prevent an never ending loop of resets. The first time querying listed commands after such an error will display that all commands have been cleared due to an error:

Default Mode
Verbose Mode
AT+AUTOEXEC
OK

AUTOEXEC FAILED ON STARTUP. ALL COMMANDS REMOVED.
{"C":0,"cmd":"AT+AUTOEXEC"}
{"A":0,"err":0,"errMsg":"ok"}
{"R":0,"info":"Autoexec failed on startup. All cmds removed."}
{"E":0,"nol":4}

Example:

Default Mode
Verbose Mode
# Adding command in list
AT+AUTOEXEC=AT+ADVSTART
OK
# If no commands in list
AT+AUTOEXEC
OK

AUTOEXEC LIST EMPTY!

# If commands in list exist
AT+AUTOEXEC
OK
CMD1: AT+ADVSTART
# Adding command in list
AT+AUTOEXEC=AT+ADVSTART
{"C":2,"cmd":"AT+AUTOEXEC=AT+ADVSTART"}
{"A":2,"err":0,"errMsg":"ok"}
{"E":2,"nol":3}
# If no commands in list
AT+AUTOEXEC
{"C":1,"cmd":"AT+AUTOEXEC"}
{"A":1,"err":0,"errMsg":"ok"}
{"R":1,"info":"Autoexec list empty"}
{"E":1,"nol":4}

# If commands in list exist
{"C":3,"cmd":"AT+AUTOEXEC"}
{"A":3,"err":0,"errMsg":"ok"}
{"R":3,"cmd1":"AT+ADVSTART"}}
{"E":3,"nol":4}

AT+AUTOEXECLOOP

  • Sets start/end of loop in auto execute list(AUTOEXEC). All auto execute commands between loop start and loop end will loop forever or till stopped by clearing the auto execute list using AT+CLRAUTOEXEC
CommandSyntax
AT+AUTOEXECLOOP
AT+AUTOEXECLOOP=START or END

Any commands added to the auto execute list before loop start will be run only once.
Any commands added after the loop end will be ignored.
If only loop start is set, but not loop end, all the commands will run only once.

Details on how to use Auto Execution loop and examples are available here. Example usage

Example:

Default Mode
Verbose Mode
AT+AUTOEXECLOOP=START
OK
# Add commands using AT+AUTOEXEC that will be in the loop
AT+AUTOEXEC=ATI
OK
AT+AUTOEXEC=AT+WAIT=10
OK
AT+AUTOEXECLOOP=END
OK
AT+AUTOEXEC
OK
CMD1: LOOP_START
CMD2: ATI
CMD3: AT+WAIT=10
CMD4: LOOP_END
AT+AUTOEXECLOOP=START
{"C":513,"cmd":"AT+AUTOEXECLOOP=START"}
{"A":513,"err":0,"errMsg":"ok"}
{"E":513,"nol":3}
# Add commands using AT+AUTOEXEC that will be in the loop
AT+AUTOEXEC=ATI
{"C":514,"cmd":"AT+AUTOEXEC=ATI"}
{"A":514,"err":0,"errMsg":"ok"}
{"E":514,"nol":3}
AT+AUTOEXEC=AT+WAIT=10
{"C":515,"cmd":"AT+AUTOEXEC=AT+WAIT=10"}
{"A":515,"err":0,"errMsg":"ok"}
{"E":515,"nol":3}
AT+AUTOEXECLOOP=END
{"C":516,"cmd":"AT+AUTOEXECLOOP=END"}
{"A":516,"err":0,"errMsg":"ok"}
{"E":516,"nol":3}
AT+AUTOEXEC
{"C":517,"cmd":"AT+AUTOEXEC"}
{"A":517,"err":0,"errMsg":"ok"}
{"R":517,"cmd1":"LOOP_START"}
{"R":517,"cmd2":"ATI"}
{"R":517,"cmd3":"AT+WAIT=10"}
{"R":517,"cmd4":"LOOP_END"}
{"E":517,"nol":7}

AT+CANCELCONNECT

  • While in Central Mode, cancels any ongoing connection attempts.

    Useful for when the peripheral has stopped advertising before a successful connection, or if an incorrect MAC address has been entered.

CommandSyntax
AT+CANCELCONNECTAT+CANCELCONNECT

Example:

Default Mode
Verbose Mode
AT+CANCELCONNECT
OK
AT+CANCELCONNECT
{"C":11,"cmd":"AT+CANCELCONNECT"}
{"A":11,"err":0,"errMsg":"ok"}
{"E":11,"nol":3}

AT+CENTRAL

  • Sets the device Bluetooth role to central role. Advertising must be stopped and any connection must be terminated before the role change is accepted.
CommandSyntax
AT+CENTRALAT+CENTRAL

Example:

Default Mode
Verbose Mode
AT+CENTRAL
OK
AT+CENTRAL
{"C":12,"cmd":"AT+CENTRAL"}
{"A":12,"err":0,"errMsg":"ok"}
{"E":12,"nol":3}

AT+CLEARINDI

  • Disables indication for selected characteristic.
CommandSyntax
AT+CLEARINDIAT+CLEARINDI=(indication handle)

Which is the indication handle?

0011 char 6e400001-b5a3-f393-e0a9-e50e24dcca9e prop=20 (-----I--) # <-------- The I means that the Characteristic Properties has Indication
0012 ---- 6e400003-b5a3-f393-e0a9-e50e24dcca9e  # <--------- This (0012) is the handle you want to send in.
0013 desc 0x2902                # You can use AT+GATTCREAD to read the description handle (here 0013) to see if indication is set. (0x0100 = set, 0x0000 = not set)
  • If the status=0 in handle_evt_gattc_write_completed string, that means you have successfully written to it.

Example:

Default Mode
Verbose Mode
AT+CLEARINDI=0012
handle_evt_gattc_write_completed: conn_idx=0000 handle=0013 status=0
{"C":19,"cmd":"AT+CLEARINDI=0014"}
{"A":19,"err":0,"errMsg":"ok"}
{"E":19,"nol":3}
{776:"0000","0015":{"writeStatus":0}} # <--- Event

AT+CLEARNOTI

  • Disables notification for selected characteristic.
CommandSyntax
AT+CLEARNOTIAT+CLEARNOTI=(notification handle)

Which is the notification handle?

0011 char 6e400001-b5a3-f393-e0a9-e50e24dcca9e prop=10 (----N---) # <-------- The N means that the Characteristic Properties has Notify
0012 ---- 6e400003-b5a3-f393-e0a9-e50e24dcca9e  # <--------- This (0012) is the handle you want to send in.
0013 desc 0x2902                # You can use AT+GATTCREAD to read the description handle (here 0013) to see if notification is set. (0x0100 = set, 0x0000 = not set)
  • If the status=0 in handle_evt_gattc_write_completed string, that means you have successfully written to it.

Example:

Default Mode
Verbose Mode
AT+CLEARNOTI=0012
handle_evt_gattc_write_completed: conn_idx=0000 handle=0013 status=0
AT+CLEARNOTI=000D
{"C":21,"cmd":"AT+CLEARNOTI=000D"}
{"A":21,"err":0,"errMsg":"ok"}
{"E":21,"nol":3}
{776:"0000","000e":{"writeStatus":0}} # <--- Event

AT+CLIENT

  • Only usable in Dual role. Sets the dongle role towards the targeted connection to client.
CommandSyntax
AT+CLIENTAT+CLIENT

Example:

Default Mode
Verbose Mode
AT+CLIENT
OK
AT+CLIENT
{"C":29,"cmd":"AT+CLIENT"}
{"A":29,"err":0,"errMsg":"ok"}
{"E":29,"nol":3}

AT+CLRAUTOEXEC

  • Clear any commands in the auto execute (AUTOEXEC) list.
CommandSyntax
AT+CLRAUTOEXECAT+CLRAUTOEXEC

Example:

Default Mode
Verbose Mode
AT+CLRAUTOEXEC
OK
{"C":3,"cmd":"AT+CLRAUTOEXEC"}
{"A":3,"err":0,"errMsg":"ok"}
{"E":3,"nol":3}

AT+CLRUOI

  • Clear any set Unique Organization ID.
CommandSyntax
AT+CLRUOIAT+CLRUOI

Example:

Default Mode
Verbose Mode
ATI
Smart Sensor Devices
DA14683 (P25Q80LE)
BleuIO
Firmware Version: 2.7.6


Peripheral role


Not Connected


Advertising


Your Unique Organization ID
AT+CLRUOI
OK
ATI
Smart Sensor Devices
DA14683 (P25Q80LE)
BleuIO
Firmware Version: 2.7.6


Peripheral role


Not Connected


Advertising
ATI
{"C":1,"cmd":"ATI"}
{"A":1,"err":0,"errMsg":"ok"}
{"R":1,"dev":"Smart Sensor Devices","hw":"DA14683 (P25Q80LE)","name":"BleuIO"}
{"R":1,"fwVer":"2.7.6","gap_role":"peripheral"}
{"R":1,"connected":false,"advertising":true}
{"R":1,"uoi":"Your Unique Organization ID"}
{"E":1,"nol":7}
AT+CLRUOI
{"C":2,"cmd":"AT+CLRUOI"}
{"A":2,"err":0,"errMsg":"ok"}
{"E":2,"nol":3}
ATI
{"C":3,"cmd":"ATI"}
{"A":3,"err":0,"errMsg":"ok"}
{"R":3,"dev":"Smart Sensor Devices","hw":"DA14683 (P25Q80LE)","name":"BleuIO"}
{"R":3,"fwVer":"2.7.6","gap_role":"peripheral"}
{"R":3,"connected":false,"advertising":true}
{"E":3,"nol":6}

AT+CONNECTBOND

  • Scan for and initiates a connection with a selected bonded device. Works even if the peer bonded device is advertising with a Private Random Resolvable Address. Upon successfully connecting it will attempts to display the services of the peer device (if auto-discover services (ATDS) is on). The dongle must be in central or dual role.
CommandSyntax
AT+CONNECTBONDAT+CONNECTBOND=bonded address


This command will do a scan for up to 12 seconds to see if the bonded address is advertising. It will also resolve any addresses it can with it's IRK (Identity Resolving Key) and check if any resolved address matches the bonded address. If it finds the bonded address, either advertising with a static address or Private Random Resolvable Address, it will stop the scan and connect to it.

The bonded address must be in the bonded list (AT+GETBOND).

Example:

Default Mode
Verbose Mode
AT+CONNECTBOND=40:48:FD:EA:E8:38
Trying to connect...

Identity Address: 40:48:FD:EA:E8:38

SCAN COMPLETE

CONNECTED.

Target conn indx changed to=0000

handle_evt_gap_connected: conn_idx=0000 address=40:48:fd:ea:e8:38 CI max is 24.
AT+CONNECTBOND=40:48:FD:EA:E8:38
{"C":5,"cmd":"AT+CONNECTBOND=40:48:FD:EA:E8:38"}
{"A":5,"err":0,"errMsg":"ok"}
{"R":5,"evt":{"action":"connecting","addr":"40:48:FD:EA:E8:38"}}
{"E":5,"nol":4}
{"S":0,"idAddr":"40:48:FD:EA:E8:38"}
{"SE":0,"evt":{"action":"scan completed"}}
{256:"0000","evt":{"action":"target conn index changed","target":"0000"}}
{256:"0000","evt":{"action":"connected","addr":"40:48:fd:ea:e8:38","CImin":24,"CImax":24}}

AT+CONNPARAM

  • Sets or displays preferred connection parameters. When run while connected will update connection parameters on the current target connection.
CommandSyntax
AT+CONNPARAMAT+CONNPARAM
or
AT+CONNPARAM=intv_min=intv_max=slave_latency=supervision_timeout

Setting connection parameters when not connected will result in using set connection parameters as the default when using the AT+GAPCONNECT command without arguments.

Querying connection parameters using the command without parameters will display the current set preferred connection parameters. When used while connected will instead show current active connection parameters.

Connection ParameterRange
intv_min (Connection Interval Min)7.5ms-4000ms
intv_max (Connection Interval Max)7.5ms-4000ms
slave_latency (Slave Latency)0-499*
supervision_timeout (Supervision Time-out)100ms-32000ms

(*) The slave latency can also not exceed (( supervision_timeout / (intv_max * 2)) -1).

The CI min and CI max as shown upon connection event are calculated as such: (interval in ms) * 100 / 125. So if you for example set the intv_min to 30 it will show as CI min of 24.

Example:

Default Mode
Verbose Mode
AT+CONNPARAM
Connection Interval min = 24
Connection Interval max = 24
Slave Latency = 1
Supervision Timeout = 1000ms.
AT+CONNPARAM
{"C":0,"cmd":"AT+CONNPARAM"}
{"A":0,"err":0,"errMsg":"ok"}
{"R":0,"evt":{"action":"getting conn param"}}
{"R":0,"CImin":24,"CImax":24,"sl":1,"sup_to(ms)":1000}
{"E":0,"nol":5}

When used while not connected:

Default Mode
Verbose Mode
AT+CONNPARAM=30=60=1=1000
OK
DEFAULT CONN PARAM UPDATED!
AT+CONNPARAM=30=60=1=1000
{"C":0,"cmd":"AT+CONNPARAM=30=60=1=1000"}
{"A":0,"err":0,"errMsg":"ok"}
{"R":0,"evt":{"action":"default conn param updated"}}
{"E":0,"nol":4}

Used when connected:

Default Mode
Verbose Mode
AT+CONNPARAM=30=30=1=1000
OK
ACTIVE CONN PARAM UPDATED!

Peripheral updated CI min is 24, CI max is 24.
AT+CONNPARAM=30=30=1=1000
{"C":5,"cmd":"AT+CONNPARAM=30=30=1=1000"}
{"A":5,"err":0,"errMsg":"ok"}
{"R":5,"evt":{"action":"active conn param updated"}}
{"E":5,"nol":4}
{263:"0000","evt":{"action":"conn param updated","CImin":24,"CImax":24}}
{272:"0000","evt":{"action":"conn param updated completed","status":0}}

AT+CONNSCANPARAM

  • Set or queries the connection scan window and interval used.
CommandSyntax
AT+CONNSCANPARAMAT+CONNSCANPARAM=scan intv ms=scan win ms
AT+CONNSCANPARAM

Scan Interval is the duration of time between scans.
Scan Window determines how long to scan for at each interval.
The Scan Window parameter must be equal or smaller than the Scan Interval.

The scan interval and window can be set in steps of 0.625ms. Allowed values for interval span in the range of 2.5ms to 10240ms. This command set the scan parameters used for initiated connections.

Return scan window and scan interval values are in units of 0.625ms and can be converted to ms like this:
return value * 0.625
So for example 160 * 0.625 = 100ms
and 320 * 0.625 = 200ms

Example:

Default Mode
Verbose Mode
AT+CONNSCANPARAM=200=100
OK
AT+CONNSCANPARAM
OK
Connection Scan Interval = 320
Connection Scan Window = 160
AT+CONNSCANPARAM=200=100
{"C":0,"cmd":"AT+CONNSCANPARAM=200=100"}
{"A":0,"err":0,"errMsg":"ok"}
{"E":0,"nol":3}
AT+CONNSCANPARAM
{"C":1,"cmd":"AT+CONNSCANPARAM"}
{"A":1,"err":0,"errMsg":"ok"}
{"R":1,"evt":{"action":"getting conn scan param"}}
{"R":1,"conn_scan_intv":320,"conn_scan_win":160}
{"E":1,"nol":5}

AT+CUSTOMSERVICE

  • Sets or queries Custom Service. Max 5 Characteristics can be added.
  • Several values cannot be changed while connected/connecting or advertising.
CommandSyntax
AT+CUSTOMSERVICE
AT+CUSTOMSERVICE
AT+CUSTOMSERVICE=Idx=UUID=XXXX or AT+CUSTOMSERVICE=Idx=UUID=xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx
AT+CUSTOMSERVICE=Idx=PROP=C...
AT+CUSTOMSERVICE=Idx=PERM=C...
AT+CUSTOMSERVICE=Idx=LEN=I
AT+CUSTOMSERVICE=Idx=VALUE=data
AT+CUSTOMSERVICE=Idx=VALUEB=data
AT+CUSTOMSERVICE=Idx=DPERM=C...
AT+CUSTOMSERVICE=Idx=DLEN=I
AT+CUSTOMSERVICE=Idx=DVALUE=data
AT+CUSTOMSERVICE=Idx=DVALUEB=XXX

The first parameter when using the AT+CUSTOMSERVICE= to setup a Service is the index to allow you to target which Characteristic you want to setup or set the UUID of the Service.

IndexType
0Service
1Characteristic1
2Characteristic2
3Characteristic3
4Characteristic4
5Characteristic5

AT+CUSTOMSERVICE can take the following parameters:

ParameterDescriptionInput ValueExampleCan be changed after starting Service?
UUIDSet service or characteristic UUID.16-bit UUID or 128-bit UUID (Hex Big Endian)For setting 16-bit UUID of Service:NO
AT+CUSTOMSERVICE=0=UUID=1801
For setting 16-bit UUID of Characteristic1
AT+CUSTOMSERVICE=1=UUID=1802
PROPSet the characteristic properties.Characteristic PropertiesAT+CUSTOMSERVICE=1=PROP=WNRNO
See the properties table below for supported properties.
PERMSet the characteristic permission.Characteristic PermissionsAT+CUSTOMSERVICE=5=PERM=RWNO
See the permission table below for supported permission.
LENMax size in bytes of the value the Characteristic can hold.Number between 1-250AT+CUSTOMSERVICE=3=LEN=112NO
VALUESet value of characteristic in ASCII.Characteristic valueAT+CUSTOMSERVICE=1=VALUE=CharDATA1YES
Will overwrite Byte Value if any.
VALUEBSet value of characteristic in Bytes.Characteristic hex valueAT+CUSTOMSERVICE=1=VALUEB=0102030405YES
Will overwrite ASCII Value if any.
DPERMSet the characteristic properties.Descriptor PermissionsAT+CUSTOMSERVICE=5=DPERM=RNO
See the permission table below for supported permission.
DLENMax size in bytes of the value the Descriptor can hold.Number between 1-250AT+CUSTOMSERVICE=3=LEN=112NO
DVALUESet value of descriptor in ASCII.Descriptor valueAT+CUSTOMSERVICE=2=DVALUE=DescDATA1YES
Will overwrite Byte Value if any.
DVALUEBSet value of descriptor in Bytes.Descriptor hex valueAT+CUSTOMSERVICE=1=DVALUEB=FF02020202YES
Will overwrite ASCII Value if any.

NOTE: Setting at least a valid Service UUID is required to start the service.
Characteristics without an UUID will not be added, nor will their descriptor.
Descriptors will only be added if the have a value when starting the service.
Characteristic & Descriptor Max Size default value is 0. Max Size need to be increased before setting Characteristic or Descriptor Value.
Characteristic & Descriptor Max Size cannot be set lower than the Size of the current Value, if any.
Characteristic & Descriptor Value cannot be larger than the currently set Max Size for that Characteristic/Descriptor.

Valid input values:

Input ValueFormatExample:Case-sensitive?
128-bit UUIDxxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxxfa284580-9d88-4b70-9775-ce4786a6bb96NO
16-bit UUID*XXXX1801NO
Characteristic & Descriptor valueStringHelloYES
Characteristic & Descriptor hex valueXXXXXXXX...0102030405060A0BDDFFEEYES
NumberString12NO
Characteristic PropertiesStringRWXIYES
Characteristic & Descriptor PermissionsStringRWYES

Properties Table:

ValueMeaningDescription
RReadClient can read the Characteristic value.
Read permission need to also be set.
WWriteClient can write to the Characteristic value and expect an acknowledgment (response) from server.
Write permission need to also be set.
XWrite without ResponseClient can write to the Characteristic value without the server acknowledging (responding) to client.
Write permission need to also be set.
NNotifyClient can subscribe to characteristic value allowing server to initiate data transfer when changing characteristic value.
Client does not acknowledge (respond) data.
IIndicateSame as Notify but client has to acknowledge data on arrival.

NOTE: Changing Characteristic Value with either Notify or Indicate property set and connected to peers will notify/indicate all peers that has subscribed to the characteristic.

Permissions Table:

ValueMeaningDescription
RReadNo encryption required (Security Level 1)
Required for client to be able to read the characterisitc/descriptor.
ERead (Encryption)Connection with encryption required (Security Level 2+)
Required for client to be able to read the characterisitc/descriptor.
ARead (Authentication)Authenticated connection Required (Security Level 3+)
Required for client to be able to read the characterisitc/descriptor.
WWriteNo encryption required (Security Level 1)
Required for client to be able to write to the characterisitc/descriptor.
DWrite (Encryption)Connection with encryption required (Security Level 2+)
Required for client to be able to write to the characterisitc/descriptor.
BWrite (Authentication)Authenticated connection Required (Security Level 3+)
Required for client to be able to write to the characterisitc/descriptor.

NOTE: Setting permissions requiring Encryption/Authentication requires that the BleuIO is setup to achive the required Security Mode otherwise the client will be unable to interact with the characterisitc/descriptor.


Properties and Permissions can be in any order. For example setting Read, Write and Notify Properties can be set like this:
AT+CUSTOMSERVICE=1=PROP=RWN or AT+CUSTOMSERVICE=1=PROP=NRW

Properties can also be added in any combination. With the exception of Notify and Indicate, which are exclusive. Meaning you can only choose one or the other.

Read Permissions and Write Permissions are also exclusive. You can only have one type of Read Permission and/or only one type of Write Permission but in any combination.
For example Read (Encryption) and Write (Authentication):
AT+CUSTOMSERVICE=1=PERM=EB
or Read and Write (Encryption):
AT+CUSTOMSERVICE=1=PERM=RD


Output when Client is writing to a custom characteristic/descriptor

Default Mode
Verbose Mode
cust_char1 RX: conn_idx=0000 handle=001a length=5

Value received: hello
Hex: 0x68656C6C6F
{281:"0000","evt":{"handle":"001e","handleName":"cust_char2","ascii":"hello","len":5}}
{281:"0000","evt":{"handle":"001e","handleName":"cust_char2","hex":"0x68656C6C6F","len":5}}

Output when Client is setting notification/indication

Default Mode
Verbose Mode
Indication turned on by connIdx=0000 for cust_char1 (handle=001B)

Notification/Indication turned off by connIdx=0000 for cust_char2 (handle=001F)

Notification turned on by connIdx=0000 for cust_char2 (handle=001F)
## notification:
{282:"0000","evt":{"action":"noti/indi change","handle":"001f","handleName":"cust_char2","value":0001}}
## indication:
{282:"0000","evt":{"action":"noti/indi change","handle":"001b","handleName":"cust_char1","value":0002}}
## turning off notification/indication:
{282:"0000","evt":{"action":"noti/indi change","handle":"001b","handleName":"cust_char1","value":0000}}


Example:

Default Mode
Verbose Mode
AT+CUSTOMSERVICE
CUSTOMSERVICE SERVICE UUID = Not set!

AT+CUSTOMSERVICE=0=UUID=ee6ec068-7447-4045-9fd0-593f3ba3c2ee
OK
AT+CUSTOMSERVICE=1=UUID=018f55d9-d747-4c4e-a87b-e9b074ffd2b6
OK
AT+CUSTOMSERVICE=1=PROP=RWI
OK
AT+CUSTOMSERVICE=1=PERM=RW
OK
AT+CUSTOMSERVICE=1=LEN=100
OK
AT+CUSTOMSERVICE=1=VALUE=CharDATA1
OK
AT+CUSTOMSERVICE=1=DLEN=100
OK
AT+CUSTOMSERVICE=1=DVALUE=DescriptorText1
OK
AT+CUSTOMSERVICE=1=DPERM=RW
OK

AT+CUSTOMSERVICE
CUSTOMSERVICE SERVICE UUID= ee6ec068-7447-4045-9fd0-593f3ba3c2ee

CUSTOMSERVICE CHAR1 UUID=018f55d9-d747-4c4e-a87b-e9b074ffd2b6
PROP=RWI
PERM=RW
SIZE=100
VALUE(ASCII)=CharDATA1

CUSTOMSERVICE CHAR1 DESC
PERM=RW
SIZE=100
VALUE(ASCII)=DescriptorText1
AT+CUSTOMSERVICE
{"C":5,"cmd":"AT+CUSTOMSERVICE"}
{"A":5,"err":0,"errMsg":"ok"}
{"R":5,"customServiceUUID":"","set":"false"}
{"E":5,"nol":4}
AT+CUSTOMSERVICE=0=UUID=ee6ec068-7447-4045-9fd0-593f3ba3c2ee
{"C":0,"cmd":"AT+CUSTOMSERVICE=0=UUID=ee6ec068-7447-4045-9fd0-593f3ba3c2ee"}
{"A":0,"err":0,"errMsg":"ok"}
{"E":0,"nol":3}
AT+CUSTOMSERVICE=1=UUID=018f55d9-d747-4c4e-a87b-e9b074ffd2b6
{"C":1,"cmd":"AT+CUSTOMSERVICE=1=UUID=018f55d9-d747-4c4e-a87b-e9b074ffd2b6"}
{"A":1,"err":0,"errMsg":"ok"}
{"E":1,"nol":3}
AT+CUSTOMSERVICE=1=PROP=RWI
{"C":2,"cmd":"AT+CUSTOMSERVICE=1=PROP=RWI"}
{"A":2,"err":0,"errMsg":"ok"}
{"E":2,"nol":3}
AT+CUSTOMSERVICE=1=PERM=RW
{"C":3,"cmd":"AT+CUSTOMSERVICE=1=PERM=RW"}
{"A":3,"err":0,"errMsg":"ok"}
{"E":3,"nol":3}
AT+CUSTOMSERVICE=1=LEN=100
{"C":4,"cmd":"AT+CUSTOMSERVICE=1=LEN=100"}
{"A":4,"err":0,"errMsg":"ok"}
{"E":4,"nol":3}
AT+CUSTOMSERVICE=1=VALUE=CharDATA1
{"C":5,"cmd":"AT+CUSTOMSERVICE=1=VALUE=CharDATA1"}
{"A":5,"err":0,"errMsg":"ok"}
{"E":5,"nol":3}
AT+CUSTOMSERVICE=1=DLEN=100
{"C":6,"cmd":"AT+CUSTOMSERVICE=1=DLEN=100"}
{"A":6,"err":0,"errMsg":"ok"}
{"E":6,"nol":3}
AT+CUSTOMSERVICE=1=DVALUE=DescriptorText1
{"C":7,"cmd":"AT+CUSTOMSERVICE=1=DVALUE=DescriptorText1"}
{"A":7,"err":0,"errMsg":"ok"}
{"E":7,"nol":3}
AT+CUSTOMSERVICE=1=DPERM=RW
{"C":8,"cmd":"AT+CUSTOMSERVICE=1=DPERM=RW"}
{"A":8,"err":0,"errMsg":"ok"}
{"E":8,"nol":3}

AT+CUSTOMSERVICE
{"C":5,"cmd":"AT+CUSTOMSERVICE"}
{"A":5,"err":0,"errMsg":"ok"}
{"R":5,"customServiceUUID":"ee6ec068-7447-4045-9fd0-593f3ba3c2ee","set":"true"}
{"R":5,"customChar1":{"UUID":"018f55d9-d747-4c4e-a87b-e9b074ffd2b6","prop":"RWI","perm":"RW","Size":100,"value(ascii)":"CharDATA1"}}
{"R":5,"customDesc1":{"perm":"RW","Size":100,"value(ascii)":"DescriptorText1"}}
{"E":5,"nol":6}

AT+CUSTOMSERVICESTART

  • Starts the Custom Service based on the settings set by AT+CUSTOMSERVICE= Command.
    Cannot be started while connected/connecting or advertising.
CommandSyntax
AT+CUSTOMSERVICESTARTAT+CUSTOMSERVICESTART

Example:

Default Mode
Verbose Mode
AT+CUSTOMSERVICESTART
OK
AT+CUSTOMSERVICESTART
{"C":27,"cmd":"AT+CUSTOMSERVICESTART"}
{"A":27,"err":0,"errMsg":"ok"}
{"E":27,"nol":3}

AT+CUSTOMSERVICESTOP

  • Stops the Custom Service.
    Cannot be changed while connected/connecting or advertising.
CommandSyntax
AT+CUSTOMSERVICESTOPAT+CUSTOMSERVICESTOP

Example:

Default Mode
Verbose Mode
AT+CUSTOMSERVICESTOP
OK
AT+CUSTOMSERVICESTOP
{"C":27,"cmd":"AT+CUSTOMSERVICESTOP"}
{"A":27,"err":0,"errMsg":"ok"}
{"E":27,"nol":3}

AT+CUSTOMSERVICERESET

  • Stops the Custom Service and resets the Custom Service settings set by the AT+CUSTOMSERVICE= command to it's default values.
    Cannot be changed while connected/connecting or advertising.
CommandSyntax
AT+CUSTOMSERVICERESETAT+CUSTOMSERVICERESET

Example:

Default Mode
Verbose Mode
AT+CUSTOMSERVICERESET
OK
AT+CUSTOMSERVICERESET
{"C":27,"cmd":"AT+CUSTOMSERVICERESET"}
{"A":27,"err":0,"errMsg":"ok"}
{"E":27,"nol":3}

AT+DEVICENAME

  • Get or sets the device name used for GAP service. Cannot be set while connected or advertising.
CommandSyntax
AT+DEVICENAMEAT+DEVICENAME=new_device_name
or
AT+DEVICENAME


Example:

Default Mode
Verbose Mode
AT+DEVICENAME=NEW_NAME
SET DEVICE NAME=NEW_NAME

OK
AT+DEVICENAME
{"C":30,"cmd":"AT+DEVICENAME"}
{"A":30,"err":0,"errMsg":"ok"}
{"R":30,"deviceName":"BleuIO"}
{"E":30,"nol":4}
AT+DEVICENAME=TESTNAME
{"C":0,"cmd":"AT+DEVICENAME=TESTNAME"}
{"A":0,"err":0,"errMsg":"ok"}
{"R":0,"deviceName":"TESTNAME"}
{"E":0,"nol":4}

AT+DIS

  • Shows the Device Information Service information to be used.
CommandSyntax
AT+DISAT+DIS

Shows the Device Information Service information to be used. Will show the default BleuIO information if no custom information has been set.

Example:

Default Mode
Verbose Mode
AT+DIS
DIS Service is set but not locked in.
dis_info_start:
manufacturer=MAN_NAME
model_number=MOD_NUM
serial_number=SERIAL
hw_revision=HW_REV
fw_revision=FW_REV
sw_revision=SW_REV
dis_info_end
AT+DIS
{"C":32,"cmd":"AT+DIS"}
{"A":32,"err":0,"errMsg":"ok"}
{"R":32,"info":"DIS service info is locked in"}
{"R":32,"manuf":"Smart Sensor Devices","mdlNr":"SSD005","sNr":"000000000000"}
{"R":32,"hwRev":"Rev.A","fwRev":"2.1.5","swRev":"bleuio.2.1.5_Release"}
{"E":32,"nol":6}

AT+DUAL

  • Sets the device Bluetooth role to dual role. This means it has the capabilities of both Central and Peripheral role. Advertising must be stopped and, any connection must be terminated before the role change is accepted.
CommandSyntax
AT+DUALAT+DUAL

Example:

Default Mode
Verbose Mode
AT+DUAL
OK
AT+DUAL
{"C":27,"cmd":"AT+DUAL"}
{"A":27,"err":0,"errMsg":"ok"}
{"E":27,"nol":3}

AT+ENTERPASSKEY

  • When faced with this message: BLE_EVT_GAP_PASSKEY_REQUEST use the AT+ENTERPASSKEY command to enter the 6-digit passkey to continue the pairing request.
CommandSyntax
AT+ENTERPASSKEY
AT+ENTERPASSKEY=xxxxxx

Example:

Default Mode
Verbose Mode
AT+ENTERPASSKEY=123456
OK
AT+ENTERPASSKEY=123456
{"C":6,"cmd":"AT+ENTERPASSKEY=123456"}
{"A":6,"err":0,"errMsg":"ok"}
{"E":6,"nol":3}

AT+FINDSCANDATA

  • Scans for all advertising/response data which contains the search params for infinite time unless an optional scan timer parameter is set.
    Scan can be stopped at any time by sending CTRL+C (0x03).
CommandSyntax
AT+FINDSCANDATAAT+FINDSCANDATA=search params
AT+FINDSCANDATA=search params=seconds

Example:

Default Mode
Verbose Mode
AT+FINDSCANDATA=FF5
SCANNING...

[00:D4:2E:CD:72:23] Device Data [ADV]: 02010618FF5B00110101010101010101011405326845343864353466757675

[D7:D3:AA:00:B5:24] Device Data [ADV]: 02010618FF540930430924302903049320943094F90890548359049E495432

[F9:0D:00:E7:72:21] Device Data [ADV]: 02010618FF540930430924302903049320943094F90890548359049E495432

[F3:00:ED:AD:8A:22] Device Data [ADV]: 02010618FF5A40930430924302903049320943094F90890548359049E49543

[F3:DE:00:D5:96:33] Device Data [ADV]: 0201061AFF5C49320943094F90890548359049E49543249320943094F90890

[C9:70:27:AF:01:54] Device Data [ADV]: 02010618FF5E924302903049320943094F9089054835992430290304932094

[D7:00:AA:07:00:EE] Device Data [ADV]: 02010618FF5301010101010101011405326845343864353466701010101010
AT+FINDSCANDATA=FF5B07
{"C":36,"cmd":"AT+FINDSCANDATA=FF5B07"}
{"A":36,"err":0,"errMsg":"ok"}
{"R":36,"action":"scanning"}
{"E":36,"nol":4}
{"SF":36,"addr":"CC:EA:2B:D7:88:48","type":0,"data":"0201061AFF5B0705040578EBDD008427E800C0005201000000000000020600"}
{"SF":36,"addr":"D0:97:8B:FE:18:6D","type":0,"data":"0201061BFF5B0705042200800E008127E900B000CF00000000000000020703"}
# Until stopped with Ctrl+C
AT+FINDSCANDATA=FF5B07=2
{"C":38,"cmd":"AT+FINDSCANDATA=FF5B07=2"}
{"A":38,"err":0,"errMsg":"ok"}
{"R":38,"action":"scanning"}
{"E":38,"nol":4}
{"SF":38,"addr":"F5:50:35:CF:B1:ED","type":0,"data":"0201061BFF5B07050422013FBD007D27E000BB00F419000000000000020A02"}
{"SF":38,"addr":"D2:B1:28:3F:42:D4","type":0,"data":"0201061BFF5B070504220049880B7F27EE00AB000A01000000000000024503"}
{"SE":38,"action":"scan completed"}

AT+FRSSI

  • Sets RSSI filter for scan results, afterwards scans will only show results with the chosen max value or below.
CommandSyntax
AT+FRSSIAT+FRSSI=max_rssi


Acceptable parameter range: -1 to -99

Example:

Default Mode
Verbose Mode
AT+FRSSI=-76
OK
AT+FRSSI=-50
{"C":40,"cmd":"AT+FRSSI=-50"}
{"A":40,"err":0,"errMsg":"ok"}
{"E":40,"nol":3}

AT+GAPADDRTYPE

  • Sets or queries what address type the dongle will use. Changing address type cannot be done while advertising or while connected to other devices.
CommandSyntax
AT+GAPADDRTYPEAT+GAPADDRTYPE=address_type_code
or
AT+GAPADDRTYPE


Table of supported address types:

Address TypeDescriptionCode
PUBLIC_STATIC_ADDRESSPublic Static Address1
PRIVATE_STATIC_ADDRESSPrivate Static Address2
PRIVATE_RANDOM_RESOLVABLE_ADDRESSPrivate Random Resolvable Address3
PRIVATE_RANDOM_NONRESOLVABLE_ADDRESSPrivate Random Non-resolvable Address4
PRIVATE_CNTLPrivate Random Resolvable address using Bluetooth LE Privacy v1.25

Non-static addresses will renew themselves every 150 seconds.
When 'Private Non-resolvable Address' is set BleuIO will not be able to connect to other devices or advertise in any other mode than in Non-connectable mode: GAP_CONN_MODE_NON_CONN. This will be chosen by default if starting advertising with the AT+ADVSTART command (without parameters) if Private Random Non-resolvable Address is set.

About Bluetooth LE Privacy:

"When Bluetooth LE Privacy is in use and advertising packets contain randomly generated MAC addresses disguising your device’s identity, the real MAC address remains hidden away. But what use is this if the outside world sees your device as having a different address?

The answer lies in the Bluetooth pairing process—Bluetooth® users are familiar with this process. Pairing indicates you trust the other device and want to interact with it. For example, if you pair your activity tracker with your phone, from that point on, the phone will have a special, trusted relationship with the tracker. What happens is much more involved but after pairing, the two devices will possess various encryption keys, one of which is concerned with privacy. This key is called the Identity Resolution Key (IRK). IRK allows the first device to translate those special, random MAC addresses which appear in the advertising packets from the second device, to the real MAC address in the second device. This capability is only in devices you have explicitly trusted."

- From "Bluetooth Technology Protecting Your Privacy"

Example:

Default Mode
Verbose Mode
AT+GAPADDRTYPE=3
OK
AT+GAPADDRTYPE
{"C":41,"cmd":"AT+GAPADDRTYPE"}
{"A":41,"err":0,"errMsg":"ok"}
{"R":41,"addrType":"PUBLIC_STATIC_ADDRESS"}
{"E":41,"nol":4}
AT+GAPADDRTYPE=2
{"C":8,"cmd":"AT+GAPADDRTYPE=2"}
{"A":8,"err":0,"errMsg":"ok"}
{"E":8,"nol":3}

AT+GAPCONNECT

  • Initiates a connection with a specific slave device. Upon successfully connecting it will attempts to display the services of the peer device (if auto-discover services (ATDS) is on). The dongle must be in central or dual role.
CommandSyntax
AT+GAPCONNECTAT+GAPCONNECT=[addr_type]slave address
AT+GAPCONNECT=[addr_type]slave_address=intv min:intv max:slave latency:supervision timeout:
AT+GAPCONNECT=deviceIndex!
AT+GAPCONNECT=deviceIndex!=intv min:intv max:slave latency:supervision timeout:
Address Type
[0]PUBLIC_ADDRESS
[1]PRIVATE_ADDRESS

If no connection parameters are entered then the parameters set with the AT+CONNPARAM command will be used, otherwise the default values will be used.
Default values:
intv min=30
intv max=30
slave latency=0
supervision timeout=1000

Connection ParameterRange
intv min (Connection Interval Min)7.5ms-4000ms
intv max (Connection Interval Max)7.5ms-4000ms
slave latency (Slave Latency)0-499*
supervision timeout (Supervision Time-out)100ms-32000ms

(*) The slave latency can also not exceed ((supervision timeout / (intv max * 2)) -1).

The CI min and CI max as shown upon connection event are calculated as such: (interval in ms) * 100 / 125. So if you for example set the intv_min to 30 it will result in a CI min of 24.

If a connection fails to be established and causes a disconnection event right after a connection event, the dongle will now automatically try to reconnect instead of showing the disconnecting event. The response shown will be: "Connection failed to be established. Reconnecting..." It will try up to 6 times. If it fails after that this response will be shown: "DISCONNECTED. FAILED TO ESTABLISH CONNECTION!" along with a disconnection event.


This command has a two-part response.
First the "Trying to connect..." response is the acknowledgement that the command has been accepted and will follow immediately after the command has been run.

The "handle_evt_gap_connected:..." response will trigger afterwards when the operation is completed. If auto-discover services (ATDS) is not turned off then all services will be discovered as well and the event "handle_evt_gattc_browse_completed:..." will trigger when it's done.

Be aware that between the first and second response other events can trigger, for example, notifications or write operations.

Instead of using MAC Address (type and address) as a parameter it is possible to use the index shown in the scan results after running AT+GAPSCAN. (For verbose mode use the command ATSIV to show index in the scan result). The indexes will reset when doing a new scan.

Scan result Index Example:

Default Mode
Verbose Mode
AT+GAPSCAN=2
SCANNING...

[01] Device: [0]12:34:56:78:9A:BC RSSI: -65

SCAN COMPLETE

AT+GAPCONNECT=1!
AT+GAPSCAN=2
{"C":9,"cmd":"AT+GAPSCAN=2"}
{"A":9,"err":0,"errMsg":"ok"}
{"R":9,"evt":{"action":"scanning"}}
{"E":9,"nol":4}
{"S":9,"indx":1,"rssi":-58,"addr":"[0]12:34:56:78:9A:BC"}
{"SE":9,"evt":{"action":"scan completed"}}
AT+GAPCONNECT=1!

Example:

Default Mode
Verbose Mode
AT+GAPCONNECT=[0]01:01:01:01:01:01=8:8:0:100:
Trying to connect...

CONNECTED.

Target conn indx changed to=0000 # (only shown on first connection)

handle_evt_gap_connected: conn_idx=0000 address=01:01:01:01:01:01 CI max is 24.

(discover and shows services, shows mtu and connection parameter changes...) # (only discovers/shows services if auto discover services (ATDS) is on)
AT+GAPCONNECT=[0]00:00:00:00:00:00=8:8:0:100:
{"C":28,"cmd":"AT+GAPCONNECT=[0]00:00:00:00:00:00=8:8:0:100:"}
{"A":28,"err":0,"errMsg":"ok"}
{"R":28,"action":"connecting","addr":"00:00:00:00:00:00"}
{"E":28,"nol":4}
{256:"0000",{"action":"target conn index changed","target":"0000"}} # <--- Event (only shown on first connection)
{256:"0000",{"action":"connected","addr":"00:00:00:00:00:00","CImin":24,"CImax":24}} # <--- Event
(discover and shows services, shows mtu and connection parameter changes...) # (only discovers/shows services if auto discover services (ATDS) is on)
Default Mode
Verbose Mode
AT+GAPCONNECT=2!=8:8:0:100:
Trying to connect...

CONNECTED.

Target conn indx changed to=0000 # (only shown on first connection)

handle_evt_gap_connected: conn_idx=0000 address=01:01:01:01:01:01 CI max is 24.

(discover and shows services, shows mtu and connection parameter changes...) # (only discovers/shows services if auto discover services (ATDS) is on)
AT+GAPCONNECT=2!=8:8:0:100:
{"C":28,"cmd":"AT+GAPCONNECT=2!=8:8:0:100:"}
{"A":28,"err":0,"errMsg":"ok"}
{"R":28,"action":"connecting","addr":"00:00:00:00:00:00"}
{"E":28,"nol":4}
{256:"0000",{"action":"target conn index changed","target":"0000"}} # <--- Event (only shown on first connection)
{256:"0000",{"action":"connected","addr":"00:00:00:00:00:00","CImin":24,"CImax":24}} # <--- Event
(discover and shows services, shows mtu and connection parameter changes...) # (only discovers/shows services if auto discover services (ATDS) is on)

AT+GAPDISCONNECT

  • Disconnects from a peer Bluetooth device. This command can be used in both central and peripheral role.
CommandSyntax
AT+GAPDISCONNECTAT+GAPDISCONNECT

Example:

Default Mode
Verbose Mode
AT+GAPDISCONNECT
handle_evt_gap_disconnected: conn_idx=0000 address=01:01:01:01:01:01.

DISCONNECTED.

Target conn indx changed to=0001 # (only shown if connected to multiple devices)
AT+GAPDISCONNECT
{"C":26,"cmd":"AT+GAPDISCONNECT"}
{"A":26,"err":0,"errMsg":"ok"}
{"R":26,"disconnect_target":"0000"}
{"E":26,"nol":4}
{258:"0000",{"action":"disconnected","addr":"00:00:00:00:00:00","reason":"16"}} # <--- Event

AT+GAPDISCONNECTALL

  • Disconnects from all connected peer Bluetooth devices. This command can be used in both central and peripheral role.
CommandSyntax
AT+GAPDISCONNECTALLAT+GAPDISCONNECTALL

This command has several responses.
First the "Disconnecting all connected devices..." response is the acknowledgement that the command has been accepted and will follow immediately after the command has been run.

The "handle_evt_gap_disconnected:..." response will trigger afterwards when a disconnection action is completed.

Lastly the "All connections terminated." response will trigger when all devices have been disconnected.

Be aware that between the different responses other events can trigger, for example, notifications or write operations.

Example:

Default Mode
Verbose Mode
AT+GAPDISCONNECTALL
Disconnecting all connected devices...
handle_evt_gap_disconnected: conn_idx=0000 address=01:01:01:01:01:01.

DISCONNECTED.

Target conn indx changed to=0001

handle_evt_gap_disconnected: conn_idx=0001 address=02:02:02:02:02:02.

DISCONNECTED.

Target conn indx changed to=0002

handle_evt_gap_disconnected: conn_idx=0002 address=03:03:03:03:03:03.

DISCONNECTED.

All connections terminated.

AT+GAPDISCONNECTALL
{"C":3,"cmd":"AT+GAPDISCONNECTALL"}
{"A":3,"err":0,"errMsg":"ok"}
{"R":3,"disconnect_target":"all"}
{"E":3,"nol":4}
{258:"0000",{"action":"disconnected","addr":"00:00:00:00:00:00","reason":"16"}} # <--- Event
{258:"0000",{"action":"target conn index changed","target":"0001"}} # <--- Event
{258:"0001",{"action":"disconnected","addr":"01:01:01:01:01:01","reason":"16"}} # <--- Event
{258:"0001",{"info":"all connections terminated"}} # <--- Event

AT+GAPIOCAP

  • Sets or queries what input and output capabilities the device has. Parameter is number between 0 to 4. Description of supported modes bellow.
CommandSyntax
AT+GAPIOCAP
AT+GAPIOCAP=x
or
AT+GAPIOCAP

Supported modes:

CodeMode
0:(GAP_IO_CAP_DISP_ONLY) Display only
1:(GAP_IO_CAP_DISP_YES_NO) Display + yes & no
2:(GAP_IO_CAP_KEYBOARD_ONLY) Keyboard only
3:(GAP_IO_CAP_NO_INPUT_OUTPUT) No input no output
4:(GAP_IO_CAP_KEYBOARD_DISP) Keyboard + display

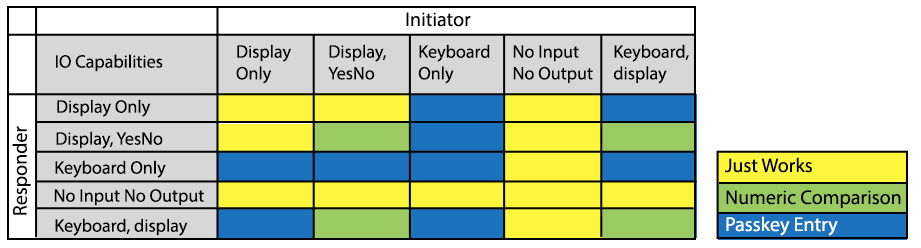

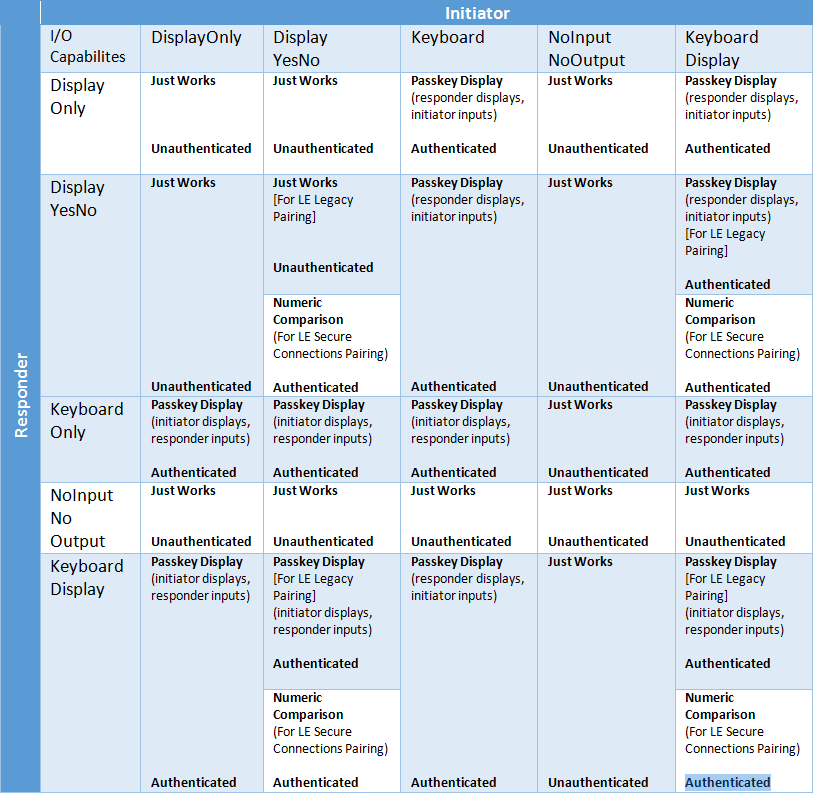

iocapabilities

Example:

Default Mode
Verbose Mode
AT+GAPIOCAP=4
OK

I/O CAP = GAP_IO_CAP_KEYBOARD_DISP
AT+GAPIOCAP
{"C":4,"cmd":"AT+GAPIOCAP"}
{"A":4,"err":0,"errMsg":"ok"}
{"R":4,"ioCap":"GAP_IO_CAP_NO_INPUT_OUTPUT"}
{"E":4,"nol":4}
AT+GAPIOCAP=4
{"C":10,"cmd":"AT+GAPIOCAP=4"}
{"A":10,"err":0,"errMsg":"ok"}
{"R":10,"ioCap":"GAP_IO_CAP_KEYBOARD_DISP"}
{"E":10,"nol":4}

AT+GAPPAIR

  • Starts a pairing (AT+GAPPAIR) or bonding procedure (AT+GAPPAIR=BOND). Depending on whether the device is master or slave on the connection, it will send a pairing or a security request respectively.
    Only usable when connected to a device.
CommandSyntax
AT+GAPPAIR
AT+GAPPAIR=BOND
or
AT+GAPPAIR

Important!
Firmware Ver <= 2.7.4:
BleuIO can save the bonding information of up to 8 devices. When 8 devices had been stored no new bonding can be done until the user manually removed one or all bonding information using the AT+GAPUNPAIR command.
> Firmware Ver >= 2.7.5:
BleuIO can save the bonding information of up to 16 devices. When 16 devices had been stored the user can still bond. The BleuIO will remove the bonding information of the first bonded device that was added to the list that isn't currently connected.
Since BleuIO support up to 8 connections at the time there will always be at least 8 bonded devices that isn't currently connected. The first device that was bonded will be removed to make room for the new bonded device information.

Example:

Default Mode
Verbose Mode
AT+GAPPAIR
PAIRING...

handle_evt_gap_pair_completed: conn_idx=0000 status=0 bond=0 mitm=0 # <--- Event

PAIRING SUCCESS
AT+GAPPAIR=BOND
PAIRING...

handle_evt_gap_pair_completed: conn_idx=0000 status=0 bond=1 mitm=0 # <--- Event

PAIRING SUCCESS
BONDING SUCCESS

# Firmware Ver >= 2.7.5 if bonding list is full
AT+GAPPAIR=BOND
BOND LIST FULL. REMOVING FIRST BONDING INFO IN LIST TO MAKE ROOM.
40:48:FD:E8:92:FD UNPARIED.

PAIRING...

handle_evt_gap_pair_completed: conn_idx=0000 status=0 bond=1 mitm=0 # <--- Event

PAIRING SUCCESS
BONDING SUCCESS
AT+GAPPAIR
{"C":19,"cmd":"AT+GAPPAIR"}
{"A":19,"err":0,"errMsg":"ok"}
{"R":19,"action":"pairing"}
{"E":19,"nol":4}
{265:"0000","evt":{"action":"pair completed","status":0,"bond":"false","mitm":"false"}} # <--- Event
AT+GAPPAIR=BOND
{"C":22,"cmd":"AT+GAPPAIR=BOND"}
{"A":22,"err":0,"errMsg":"ok"}
{"R":22,"action":"pairing"}
{"E":22,"nol":4}
{265:"0000","evt":{"action":"pair completed","status":0,"bond":"true","mitm":"false"}} # <--- Event

#
Firmware Ver >= 2.7.5 if bonding list is full
AT+GAPPAIR=BOND
{"C":15,"cmd":"AT+GAPPAIR=BOND"}
{"A":15,"err":0,"errMsg":"ok"}
{"R":15,"evt":{"action":"bond list full, removing first addr in list","addr":"40:48:FD:E8:95:BC"}}
{"R":15,"evt":{"action":"pairing"}}
{"E":15,"nol":5}
{265:"0000","evt":{"action":"pair completed","status":0,"bond":"true","mitm":"false"}} # <--- Event

AT+GAPUNPAIR

  • Unpair paired devices. This will also remove the device bond data from BLE storage. Usable both when device is connected and when not.
    Either unpair all paired devices (AT+GAPUNPAIR) or selected paired device (AT+GAPUNPAIR=device_mac_address). Public= [0] or private= [1] address type prefix required before mac address.
CommandSyntax
AT+GAPUNPAIR
AT+GAPUNPAIR=[x]xx:xx:xx:xx:xx:xx
or
AT+GAPUNPAIR

Example:

Default Mode
Verbose Mode
AT+GAPUNPAIR
UNPARIED.
AT+GAPUNPAIR
{"C":20,"cmd":"AT+GAPUNPAIR"}
{"A":20,"err":0,"errMsg":"ok"}
{"R":20,"action":"unpaired"}
{"E":20,"nol":4}
{258:"0000",{"action":"disconnected","addr":"00:00:00:00:00:00","reason":"16"}} # <--- Event

AT+GAPSCAN

  • Starts a Bluetooth device scan with or without timer set in seconds. Only accepted when device is in central role and not connected. The scan will continue indefinitely if no parameter is set or until the amount of time set is reached. Scanning aborts if user presses CTRL+C.
CommandSyntax
AT+GAPSCANAT+GAPSCAN
AT+GAPSCAN=seconds

Example:

Default Mode
Verbose Mode
AT+GAPSCAN
SCANNING...

[01] Device: [1]30:63:C5:D0:B1:DE RSSI: -38

[02] Device: [0]D0:76:50:80:0A:98 RSSI: -75(closebeacon.com)

[03] Device: [1]27:5D:B8:2E:96:B0 RSSI: -51

[04] Device: [1]5E:CE:CF:C5:20:BB RSSI: -84

SCAN COMPLETE
AT+GAPSCAN
{"C":23,"cmd":"AT+GAPSCAN"}
{"A":23,"err":0,"errMsg":"ok"}
{"R":23,"action":"scanning"}
{"E":23,"nol":4}
{"S":23,"rssi":-86,"addr":"[1]CC:EA:2B:D7:88:48"}
{"S":23,"rssi":-63,"addr":"[1]D9:CA:5D:68:D0:79"}
# Until stopped with Ctrl+C
AT+GAPSCAN=2
{"C":5,"cmd":"AT+GAPSCAN=2"}
{"A":5,"err":0,"errMsg":"ok"}
{"R":5,"action":"scanning"}
{"E":5,"nol":4}
{"S":5,"rssi":-75,"addr":"[1]F6:9B:76:F9:A7:AB"}
{"S":5,"rssi":-60,"addr":"[1]C6:33:E2:A7:03:A4"}
{"SE":5,"action":"scan completed"}

AT+GAPSTATUS

  • Reports the Bluetooth role.
CommandSyntax
AT+GAPSTATUSAT+GAPSTATUS

Example:

Default Mode
Verbose Mode
AT+GAPSTATUS
Central role

Not Connected

Not Advertising
AT+GAPSTATUS
{"C":6,"cmd":"AT+GAPSTATUS"}
{"A":6,"err":0,"errMsg":"ok"}
{"R":6,"gap_role:"dual"}
{"R":6,"connected":true,"noConns":1,"advertising":false}
{"E":6,"nol":5}

AT+GATTCREAD

  • Read attribute of remote GATT server. Can only be used in the Central role and when connected to a peripheral.
CommandSyntax
AT+GATTCREADAT+GATTCREAD=handle param

This command has a two-part response.
First "DATA WRITTEN..." response is the acknowledgement that the command has been accepted and will follow immediately after the command has been run.

The "handle_evt_gattc_read_completed:..." response will trigger afterwards when the operation is completed and will include a status code to signify if the operation was successful. (status=0 means OK, anything else means ERROR).

Be aware that between the first and second response other events can trigger, for example, notifications or connections.

Example:

Default Mode
Verbose Mode
AT+GATTCREAD=001B
OK

handle_evt_gattc_read_completed: conn_idx=0000 handle=001b status=0

Value read: HELLO
Hex: 0x48454C4C4F
Size: 5
AT+GATTCREAD=0003
{"C":2,"cmd":"AT+GATTCREAD=0003"}
{"A":2,"err":0,"errMsg":"ok"}
{"E":2,"nol":3}
{775:"0000","0003":{"readStatus":0,"ascii":"BleuIO","len":6}} # <--- Event
{775:"0000","0003":{"readStatus":0,"hex":"0x426C6575494F","len":6}} # <--- Event

AT+GATTCWRITE

  • Write attribute to remote GATT server in ASCII. Can only be used in the Central role and when connected to a peripheral.
CommandSyntax
AT+GATTCWRITEAT+GATTCWRITE=(handle param) (msg)

This command has a two-part response.
First "DATA WRITTEN..." response is the acknowledgement that the command has been accepted and will follow immediately after the command has been run.

The "handle_evt_gattc_write_completed:..." response will trigger afterwards when the operation is completed and will include a status code to signify if the operation was successful. (status=0 means OK, anything else means ERROR).

Be aware that between the first and second response other events can trigger, for example, notifications or connections.

Example:

Default Mode
Verbose Mode
AT+GATTCWRITE=001B HELLO
DATA WRITTEN: HELLO

handle_evt_gattc_write_completed: conn_idx=0000 handle=001b status=0
AT+GATTCWRITE=0014 TEST
{"C":4,"cmd":"AT+GATTCWRITE=0014 TEST"}
{"A":4,"err":0,"errMsg":"ok"}
{"R":4,"data":"TEST"}
{"E":4,"nol":4}
{776:"0000","0014":{"writeStatus":0}} # <--- Event

AT+GATTCWRITEB

  • Write attribute to remote GATT server in Hex. Can only be used in the Central role and when connected to a peripheral.
CommandSyntax
AT+GATTCWRITEBAT+GATTCWRITEB=(handle param) (msg)

This command has a two-part response.
First "DATA WRITTEN..." response is the acknowledgement that the command has been accepted and will follow immediately after the command has been run.

The "handle_evt_gattc_write_completed:..." response will trigger afterwards when the operation is completed and will include a status code to signify if the operation was successful. (status=0 means OK, anything else means ERROR).

Be aware that between the first and second response other events can trigger, for example, notifications or connections.

Example:

Default Mode
Verbose Mode
AT+GATTCWRITEB=001B 0101
DATA WRITTEN: 0101
Size: 2

handle_evt_gattc_write_completed: conn_idx=0000 handle=001b status=0
AT+GATTCWRITEB=0014 0101
{"C":5,"cmd":"AT+GATTCWRITEB=0014 0101"}
{"A":5,"err":0,"errMsg":"ok"}
{"R":5,"data":"0101"}
{"E":5,"nol":4}
{776:"0000","0014":{"writeStatus":0}} # <--- Event

AT+GATTCWRITEWR

  • Write (without response) attribute to remote GATT server in ASCII. Can only be used in the Central role and when connected to a peripheral.
CommandSyntax
AT+GATTCWRITEWRAT+GATTCWRITEWR=(handle param) (msg)

This command has a two part response.
First "DATA WRITTEN..." response is the acknowledgement that the command has been accepted and will follow immediately after the command has been run.

The "handle_evt_gattc_write_completed:..." response will trigger afterwards when the operation is completed and will include a status code to signify if the operation was successful. (status=0 means OK, anything else means ERROR).

Be aware that between the first and second response other events can trigger, for example, notifications or connections.

Example:

Default Mode
Verbose Mode
AT+GATTCWRITEWR=001B HELLO
DATA WRITTEN: HELLO

handle_evt_gattc_write_completed: conn_idx=0000 handle=001b status=0
AT+GATTCWRITEWR=0014 TEST
{"C":9,"cmd":"AT+GATTCWRITEWR=0014 TEST"}
{"A":9,"err":0,"errMsg":"ok"}
{"R":9,"data":"TEST"}
{"E":9,"nol":4}
{776:"0000","0014":{"writeStatus":0}} # <--- Event

AT+GATTCWRITEWRB

  • Write (without response) attribute to remote GATT server in Hex. Can only be used in the Central role and when connected to a peripheral.
CommandSyntax
AT+GATTCWRITEWRBAT+GATTCWRITEWRB=(handle param) (msg)

This command has a two part response.
First "DATA WRITTEN..." response is the acknowledgement that the command has been accepted and will follow immediately after the command has been run.

The "handle_evt_gattc_write_completed:..." response will trigger afterwards when the operation is completed and will include a status code to signify if the operation was successful. (status=0 means OK, anything else means ERROR).

Be aware that between the first and second response other events can trigger, for example, notifications or connections.

Example:

Default Mode
Verbose Mode
AT+GATTCWRITEWRB=001B 0101
DATA WRITTEN: 0101
Size: 2

handle_evt_gattc_write_completed: conn_idx=0000 handle=001b status=0
AT+GATTCWRITEWRB=0014 0101
{"C":8,"cmd":"AT+GATTCWRITEWRB=0014 0101"}
{"A":8,"err":0,"errMsg":"ok"}
{"R":8,"data":"0101"}
{"E":8,"nol":4}
{776:"0000","0014":{"writeStatus":0}} # <--- Event

AT+GETBOND

  • Displays all MAC address of bonded devices.
CommandSyntax
AT+GETBONDAT+GETBOND

Example:

Default Mode
Verbose Mode
# If no bonded devices
AT+GETBOND
No Bonded Devices found.

# If bonded devices exist
AT+GETBOND
D0:76:50:80:0A:98
# If no bonded devices
AT+GETBOND
{"C":1,"cmd":"AT+GETBOND"}
{"A":1,"err":0,"errMsg":"ok"}
{"R":1,"bondedAddr":"none"}
{"E":1,"nol":4}

# If bonded devices exist
AT+GETBOND
{"C":2,"cmd":"AT+GETBOND"}
{"A":2,"err":0,"errMsg":"ok"}
{"R":2,"bondedAddr":"D0:76:50:80:0A:98"}
{"E":2,"nol":4}

AT+GETCONN

  • Gets a list of currently connected devices along with their mac addresses, connection index, our role towards this connection and if it's bonded/paired.
CommandSyntax
AT+GETCONNAT+GETCONN

Example:

Default Mode
Verbose Mode
AT+GETCONN
[0]00:08:0D:05:20:B0, conn_idx=0000, Our Role: Client, bonded=false, paired=false
[0]00:01:0D:04:65:30, conn_idx=0001, Our Role: Server, bonded=true, paired=true
AT+GETCONN
{"C":10,"cmd":"AT+GETCONN"}
{"A":10,"err":0,"errMsg":"ok"}
{"R":10,"0000":{"addr":"[0]00:00:00:00:00:00","ourRole":"Client","bonded":false,"paired":false}}
{"E":10,"nol":4}

AT+GETMAC

Returns MAC address of the BleuIO device.

CommandSyntax
AT+GETMACAT+GETMAC

Example:

Default Mode
Verbose Mode
AT+GETMAC
OK
OWN MAC ADDRESS:00:00:00:00:00:28
AT+GETMAC
{"C":11,"cmd":"AT+GETMAC"}
{"A":11,"err":0,"errMsg":"ok"}
{"R":11,"own_mac_addr":"00:00:00:00:00:28"}
{"E":11,"nol":4}

AT+GETSERVICEDETAILS

  • Discovers all characteristics and descriptors of a selected service. Must run AT+GETSERVICESONLY command first to get the service handle.
CommandSyntax
AT+GETSERVICEDETAILSAT+GETSERVICEDETAILS=(service handle param)

This command has a two part response.
First the "OK" response is the acknowledgement that the command has been accepted and will follow immediately after the command has been run.

The "handle_evt_gattc_browse_completed:..." response will trigger afterwards when the operation is completed and will include a status code to signify if the operation was successful. (status=0 means OK, anything else means ERROR).

Be aware that between the first and second response other events can trigger, for example, notifications or connections.

Example:

Default Mode
Verbose Mode
AT+GETSERVICEDETAILS=0017
OK
0017 serv 0783b03e-8535-b5a0-7140-a304d2495ce1
0018 char 0783b03e-8535-b5a0-7140-a304d2495ce1 prop=10 (----N---)
0019 ---- 0783b03e-8535-b5a0-7140-a304d2495ce2
001a desc 0x2902
001b desc 0x2901
001c char 0783b03e-8535-b5a0-7140-a304d2495ce1 prop=04 (--X-----)
001d ---- 0783b03e-8535-b5a0-7140-a304d2495ce3
001e desc 0x2902
001f desc 0x2901
0020 char 0783b03e-8535-b5a0-7140-a304d2495ce1 prop=14 (--X-N---)
0021 ---- 0783b03e-8535-b5a0-7140-a304d2495ce4
0022 desc 0x2902
0023 desc 0x2901

handle_evt_gattc_browse_completed: conn_idx=0000 status=0
AT+GETSERVICEDETAILS=0017
{"C":16,"cmd":"AT+GETSERVICEDETAILS=0017"}
{"A":16,"err":0,"errMsg":"ok"}
{"E":16,"nol":3}

AT+GETSERVICES

  • Rediscovers a peripheral's services and characteristics.
CommandSyntax
AT+GETSERVICESAT+GETSERVICES

This command has a two part response.
First, the "OK" response is the acknowledgement that the command has been accepted and will follow immediately after the command has been run.

The "handle_evt_gattc_browse_completed:..." response will trigger afterwards when the operation is completed and will include a status code to signify if the operation was successful. (status=0 means OK, anything else means ERROR).

Be aware that between the first and second response other events can trigger, for example, notifications or connections.

Example:

Default Mode
Verbose Mode
AT+GETSERVICES
OK
0001 serv 0x1800
0002 char 0x1800 prop=0a (-R-W----)
0003 ---- 0x2a00
0004 char 0x1800 prop=02 (-R------)
0005 ---- 0x2a01
0006 char 0x1800 prop=02 (-R------)
0007 ---- 0x2a04
0008 char 0x1800 prop=02 (-R------)
0009 ---- 0x2aa6
000a serv 0x1801
000b char 0x1801 prop=20 (-----I--)
000c ---- 0x2a05
000d desc 0x2902
000e serv 6e400001-b5a3-f393-e0a9-e50e24dcca9e
000f char 6e400001-b5a3-f393-e0a9-e50e24dcca9e prop=0c (--XW----)
0010 ---- 6e400002-b5a3-f393-e0a9-e50e24dcca9e
0011 char 6e400001-b5a3-f393-e0a9-e50e24dcca9e prop=10 (----N---)
0012 ---- 6e400003-b5a3-f393-e0a9-e50e24dcca9e
0013 desc 0x2902

handle_evt_gattc_browse_completed: conn_idx=0000 status=0
AT+GETSERVICES
{"C":13,"cmd":"AT+GETSERVICES"}
{"A":13,"err":0,"errMsg":"ok"}
{"E":13,"nol":3}

AT+GETSERVICESONLY

  • Discovers a peripherals services.
CommandSyntax
AT+GETSERVICESONLYAT+GETSERVICESONLY

This command has a two part response.
First, the "OK" response is the acknowledgement that the command has been accepted and will follow immediately after the command has been run.

The "handle_evt_gattc_discover_completed:..." response will trigger afterwards when the operation is completed and will include a status code to signify if the operation was successful. (status=0 means OK, anything else means ERROR).

Be aware that between the first and second response other events can trigger, for example, notifications or connections.

Example:

Default Mode
Verbose Mode
AT+GETSERVICESONLY
OK
0001 serv 0x1800
000a serv 0x1801
000b serv 0783b03e-8535-b5a0-7140-a304d2495cb7
0017 serv 0783b03e-8535-b5a0-7140-a304d2495ce1
0024 serv 0x180a

handle_evt_gattc_discover_completed: conn_idx=0000 type=SVC status=0
AT+GETSERVICESONLY
{"C":15,"cmd":"AT+GETSERVICESONLY"}
{"A":15,"err":0,"errMsg":"ok"}
{"E":15,"nol":3}

AT+INDI

  • Shows list of set indication handles.
CommandSyntax
AT+INDIAT+INDI

Shows list of set indication handles along with the connection index so you can see what indication you have enabled on which connected device.

Example:

Default Mode
Verbose Mode
AT+INDI
(conn_idx=0000 indi_handle=0012)
(conn_idx=0001 indi_handle=001F)
AT+INDI
{"C":2,"cmd":"AT+INDI"}
{"A":2,"err":0,"errMsg":"ok"}
{"R":2,"resp":"No indications set"}
{"E":2,"nol":4}

AT+LED Pro

  • Controls the LED.
CommandSyntax
AT+LEDAT+LED=on/off control parameters
AT+LED=T
AT+LED=T=On intv=Off intv

Control Parameters

ParametersMeaning
on/off control parameters0 = off, 1 = on
TToggle. Without other parameters turns on default toggle, toggling on/off every 500ms
On intvDecideds how long in ms the LED should be turned on.
Off intvDecideds how long in ms the LED should be turned off.

Example:

Default Mode
Verbose Mode
AT+LED=0
OK
AT+LED=T
OK
AT+LED=T=1000=2000
OK
AT+LED=0
{"C":16,"cmd":"AT+LED=0"}
{"A":16,"err":0,"errMsg":"ok"}
{"E":16,"nol":3}
AT+LED=T
{"C":17,"cmd":"AT+LED=T"}
{"A":17,"err":0,"errMsg":"ok"}
{"E":17,"nol":3}
AT+LED=T=1000=2000
{"C":18,"cmd":"AT+LED=T=1000=2000"}
{"A":18,"err":0,"errMsg":"ok"}
{"E":18,"nol":3}

AT+MTU

  • Sets or queries the max allowed MTU size. Minimum allowed value: 67, Maximum allowed value: 512
    Cannot be changed while connected/connecting or advertising.
CommandSyntax
AT+MTU
AT+MTU
or
AT+MTU=max mtu size

Example:

Default Mode
Verbose Mode
AT+MTU=300
OK


AT+MTU
OK
Max MTU Size: 300
AT+MTU=300
{"C":0,"cmd":"AT+MTU=300"}
{"A":0,"err":0,"errMsg":"ok"}
{"E":0,"nol":3}
AT+MTU
{"C":1,"cmd":"AT+MTU"}
{"A":1,"err":0,"errMsg":"ok"}
{"R":1,"maxMTUsize":"300"}
{"E":1,"nol":4}

AT+NOTI

  • Shows list of set notification handles.
CommandSyntax
AT+NOTIAT+NOTI

Shows list of set notification handles along with the connection index so you can see what notification you have enabled on which connected device.

Example:

Default Mode
Verbose Mode
AT+NOTI
(conn_idx=0000 noti_handle=000D)
(conn_idx=0000 noti_handle=0014)
(conn_idx=0000 noti_handle=0019)
(conn_idx=0000 noti_handle=0021)
AT+NOTI
{"C":17,"cmd":"AT+NOTI"}
{"A":17,"err":0,"errMsg":"ok"}
{"R":17,"0000":{"notiHandle":"000D"}}
{"R":17,"0000":{"notiHandle":"0014"}}
{"R":17,"0000":{"notiHandle":"0019"}}
{"R":17,"0000":{"notiHandle":"0021"}}
{"E":17,"nol":7}

AT+NUMCOMPA

  • Used for accepting a numeric comparison authentication request or enabling/disabling auto-accepting numeric comparisons. AT+NUMCOMPA=0 for disabled and AT+NUMCOMPA=1 for enable. Enabled by default.
CommandSyntax
AT+NUMCOMPA
AT+NUMCOMPA=<0 or 1>
or
AT+NUMCOMPA

Example:

Default Mode
Verbose Mode
AT+NUMCOMPA=0
NUMERIC COMPARISON AUTO-ACCEPT OFF
AT+NUMCOMPA=0
{"C":17,"cmd":"AT+NUMCOMPA=0"}
{"A":17,"err":0,"errMsg":"ok"}
{"R":17,"autoNumComp":false}
{"E":17,"nol":4}
AT+NUMCOMPA=1
{"C":18,"cmd":"AT+NUMCOMPA=1"}
{"A":18,"err":0,"errMsg":"ok"}
{"R":18,"autoNumComp":true}
{"E":18,"nol":4}
{276:"0000","action":"numeric request","numericKey":"972226"} # <--- Event
{276:"0000","info":"run AT+NUMCOMPA to accept"} # <--- Event
AT+NUMCOMPA
{"C":14,"cmd":"AT+NUMCOMPA"}
{"A":14,"err":0,"errMsg":"ok"}
{"E":14,"nol":3}

AT+PERIPHERAL

  • Sets the device Bluetooth role to peripheral. Any connection must be terminated before the role change is accepted.
CommandSyntax
AT+PERIPHERALAT+PERIPHERAL

Example:

Default Mode
Verbose Mode
AT+PERIPHERAL
OK
AT+PERIPHERAL
{"C":21,"cmd":"AT+PERIPHERAL"}
{"A":21,"err":0,"errMsg":"ok"}
{"E":21,"nol":3}

AT+SCANFILTER

  • Sets or queries the scanfilter. There are three types of scanfilter, filter by name, filter by uuid or by manufacturer specific ID.
CommandSyntax
AT+SCANFILTER
AT+SCANFILTER
AT+SCANFILTER=NAME=name
AT+SCANFILTER=UUID=XXXX or AT+SCANFILTER=UUID=xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx
AT+SCANFILTER=MFSID=XXXX
AT+SCANFILTER=CLEAR

AT+SCANFILTER can take these parameters:

ParameterDescriptionInput ValueAD Flags checked for data
NAMEFilter data that includes set local name.Device Name (ASCII)«Shortened Local Name» (0x08)
«Complete Local Name» (0x09)
UUIDFilter data that includes set service UUID.16-bit UUID or 128-bit UUID (Hex Big Endian)«Incomplete List of 16-bit Service UUIDs» (0x02)
«Complete List of 16-bit Service UUIDs» (0x03)
«Incomplete List of 128-bit Service UUIDs» (0x06)
«Complete List of 128-bit Service UUIDs» (0x07)
«Service Data - 16 bit UUID» (0x16)
«Service Data - 128 bit UUID» (0x21)
MFSIDFilter data that includes set Manufacturer Specific ID.16-bit Company Identifier Code (Hex Big Endian)«Manufacturer Specific Data» (0xFF)
CLEARClears all set filters.
Input ValueFormatExample:Case-sensitive?
Device NameStringBleuIOYES
128-bit UUIDxxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxxfa284580-9d88-4b70-9775-ce4786a6bb96NO
16-bit UUID*XXXX1801NO
16-bit Company Identifier Code*XXXX075BNO

* Value FFFF is invalid for 16-bit UUID and/or 16-bit Company Identifier Code


All the filters work for AT+FINDSCANDATA command results. All filters can be active at once, or two in any combination, or just a single one. For AT+GAPSCAN command results only the NAME filter works. No filters will be active on AT+TARGETSCAN= command results.

NOTE: For AT+FINDSCANDATA command results only the Advertising packet or the Scan response packet that includes the data set by the filter will be shown. Example: If AT+SCANFILTER=NAME=BlueIO is set and the local name BleuIO is only found in the scan response packet only the scan response packet will be shown.

Example:

Default Mode
Verbose Mode
AT+SCANFILTER=NAME=BleuIO
OK

AT+SCANFILTER=UUID=0783b03e-8535-b5a0-7140-a304d2495cb7
OK

AT+SCANFILTER=MFSID=075B
OK

AT+SCANFILTER
SCANFILTER=NAME= BleuIO

SCANFILTER=MFSID= 075B

SCANFILTER=UUID= 0783b03e-8535-b5a0-7140-a304d2495cb7

AT+SCANFILTER=CLEAR
OK

AT+SCANFILTER
SCANFILTER=NAME Not set!

SCANFILTER=MFSID Not set!

SCANFILTER=UUID Not set!
AT+SCANFILTER=NAME=BleuIO
{"C":0,"cmd":"AT+SCANFILTER=NAME=BleuIO"}
{"A":0,"err":0,"errMsg":"ok"}
{"E":0,"nol":3}
AT+SCANFILTER=UUID=0783b03e-8535-b5a0-7140-a304d2495cb7
{"C":1,"cmd":"AT+SCANFILTER=UUID=0783b03e-8535-b5a0-7140-a304d2495cb7"}
{"A":1,"err":0,"errMsg":"ok"}
{"E":1,"nol":3}
AT+SCANFILTER=MFSID=075B
{"C":2,"cmd":"AT+SCANFILTER=MFSID=075B"}
{"A":2,"err":0,"errMsg":"ok"}
{"E":2,"nol":3}
AT+SCANFILTER
{"C":3,"cmd":"AT+SCANFILTER"}
{"A":3,"err":0,"errMsg":"ok"}
{"R":3,"scanfilter":"NAME","set":"true","value":"BleuIO"}
{"R":3,"scanfilter":"MFSID","set":"true","value":"075B"}
{"R":3,"scanfilter":"UUID","set":"true","value":"0783b03e-8535-b5a0-7140-a304d2495cb7"}
{"E":3,"nol":6}
AT+SCANFILTER=CLEAR
{"C":4,"cmd":"AT+SCANFILTER=CLEAR"}
{"A":4,"err":0,"errMsg":"ok"}
{"E":4,"nol":3}
AT+SCANFILTER
{"C":5,"cmd":"AT+SCANFILTER"}
{"A":5,"err":0,"errMsg":"ok"}
{"R":5,"scanfilter":"NAME","set":"false"}
{"R":5,"scanfilter":"MFSID","set":"false"}
{"R":5,"scanfilter":"UUID","set":"false"}
{"E":5,"nol":6}

AT+SCANPARAM

  • Set or queries the scan parameters used.
CommandSyntax
AT+SCANPARAMAT+SCANPARAM=scan mode=scan type=scan intv ms=scan win ms=filt dupl
AT+SCANPARAM

Scan Mode

Acceptable ValueMeaning
0General-Discoverable mode
2Observer mode (default)

In General-discoverable mode the scan will stop after 10 seconds while in Observer mode it continues until stopped.

Scan Type

Acceptable ValueMeaning
0Active Scan type (default)
1Passive Scan type

Passive scan only scans Advertising Data.
Active scans Advertising Data and requests Scan Response Data.

Scan interval and window

Scan Interval is the duration of time between scans.
Scan Window determines how long to scan for at each interval.
The Scan Window parameter must be equal or smaller than the Scan Interval.

The scan interval and window can be set in steps of 0.625ms. Allowed values for interval span in the range of 2.5ms to 10240ms. This command set the scan parameters used for scans used by the commands AT+GAPSCAN, AT+FINDSCANDATA and AT+SCANTARGET.

Return scan window and scan interval values are in units of 0.625ms and can be converted to ms like this:
return value * 0.625
So for example 160 * 0.625 = 100ms
and 320 * 0.625 = 200ms

Filter Duplicate

Acceptable ValueMeaning
0Off
1On (Displays one advertising data and/or scan response packet per MAC address. Up to 255 unique addresses.)

Example:

Default Mode
Verbose Mode
AT+SCANPARAM=2=0=200=100=0
OK
AT+SCANPARAM
OK
Scan Mode = 2
Scan Type = 0
Scan Interval = 320
Scan Window = 160
Scan Filter Duplicate = false
AT+SCANPARAM=2=0=200=100=0
{"C":1,"cmd":"AT+SCANPARAM=2=0=200=100=0"}
{"A":1,"err":0,"errMsg":"ok"}
{"E":1,"nol":3}
AT+SCANPARAM
{"C":2,"cmd":"AT+SCANPARAM"}
{"A":2,"err":0,"errMsg":"ok"}
{"R":2,"evt":{"action":"getting scan param"}}
{"R":2,"scan_mode":2,"scan_type":0,"scan_intv":320,"scan_win":160,"filt_dupl":"false"}
{"E":2,"nol":5}

AT+SCANTARGET

  • Scan a target device for infinite time unless an optional scan timer parameter is set. Displaying the advertising and response data as it updates. Can scan up to 3 devices at once. Separate addresses with a semicolon ';'.
    Scan can be stopped at any time by sending CTRL+C (0x03).
CommandSyntax
AT+SCANTARGETAT+SCANTARGET=[addr_type]slave_address
AT+SCANTARGETAT+SCANTARGET=[addr_type]slave_address=seconds

Example:

Default Mode
Verbose Mode
AT+SCANTARGET=[0]00:00:00:00:00:01
SCANNING...

[00:00:00:00:00:01] Device Data [ADV]: DataXYZ

[00:00:00:00:00:01] Device Data [RESP]: DataXYZ

[00:00:00:00:00:01] Device Data [ADV]: DataXYZ

[00:00:00:00:00:01] Device Data [RESP]: DataXYZ

[00:00:00:00:00:01] Device Data [ADV]: DataXYZ
AT+SCANTARGET=[0]00:00:00:00:00:00
{"C":23,"cmd":"AT+SCANTARGET=[0]00:00:00:00:00:00"}
{"A":23,"err":0,"errMsg":"ok"}
{"R":23,"action":"scanning"}
{"E":23,"nol":4}
{"ST":23,"addr":"00:00:00:00:00:00","type":0,"data":"02010603FF5B071107B75C49D204A34071A0B535853EB08307000000000000"}
{"ST":23,"addr":"00:00:00:00:00:00","type":4,"data":"1109426C6575494F0000000000000000000000000000000000000000000000"}
# Until stopped with Ctrl+C
AT+SCANTARGET=[0]00:00:00:00:00:00=2
{"C":24,"cmd":"AT+SCANTARGET=[0]00:00:00:00:00:00=2"}
{"A":24,"err":0,"errMsg":"ok"}
{"R":24,"action":"scanning"}
{"E":24,"nol":4}
{"ST":24,"addr":"00:00:00:00:00:00","type":0,"data":"02010603FF5B071107B75C49D204A34071A0B535853EB08307000000000000"}
{"ST":24,"addr":"00:00:00:00:00:00","type":4,"data":"1109426C6575494F0000000000000000000000000000000000000000000000"}
{"SE":24,"action":"scan completed"}

AT+SECLVL

  • Sets or queries what minimum security level will be used when connected to other devices.
    When used while connected will trigger a pairing request. When used while not connected, sets what minimum security level the dongle will demand when connecting to another device. If the other device does not meet the security requirement, the dongle will disconnect.
    Querying security level, while connected, will show actual security level. While not connected, querying will show what minimum security level has been set that the dongle will require when connecting to another device. Note that what security level is supported is dependent on what Input/Output capability is set. See the table for more information.


Input/Output Cababilities and supported security levels:

IO CAPDISPLAY ONLYDISPLAY, YESNOKEYBOARD ONLYNO INPUT/OUTPUTKEYBOARD, DISPLAY
DISPLAY ONLY(1) (2)(1) (2)(1) (3) (4)(1) (2)(1) (4)
DISPLAY, YESNO(1) (2)(1) (2) (4)(1) (3) (4)(1) (2)(1) (4)
KEYBOARD ONLY(1) (3) (4)(1) (3) (4)(1) (4)(1) (2)(1) (4)
NO INPUT/OUTPUT(1) (2)(1) (2)(1) (2)(1) (2)(1) (2)
KEYBOARD, DISPLAY(1) (4)(1) (4)(1) (4)(1) (2)(1) (4)


BLE pairing summary

source : Bluetooth® Low Energy Security Modes and Procedures"

Supported modes:

CodeMode
1:(Security Level 1) No security (No authentication and no encryption).
2:(Security Level 2) Unauthenticated pairing with encryption.
3:(Security Level 3) Authenticated pairing with encryption.
4:(Security Level 4) Authenticated LE Secure Connections pairing with encryption.


Setting the security level to 2 or higher will initiate a pairing automatically if connected or when connecting to another device.


CommandSyntax
AT+SECLVL
AT+SECLVL=x
or
AT+SECLVL

Example:

Default Mode
Verbose Mode
AT+SECLVL=2
OK
AT+SECLVL
{"C":25,"cmd":"AT+SECLVL"}
{"A":25,"err":0,"errMsg":"ok"}
{"R":25,"setSecLvl":1}
{"E":25,"nol":4}
AT+SECLVL=2
{"C":26,"cmd":"AT+SECLVL=2"}
{"A":26,"err":0,"errMsg":"ok"}
{"E":26,"nol":3}

ATSIV

  • Turns showing verbose scan result index on/off. (Off per default).
CommandSyntax
ATSIVATSIV0
ATSIV1

Example:

Default Mode
Verbose Mode
ATSIV1
Show Verbose Scan Index On!
ATSIV0
Show Verbose Scan Index Off!
ATSIV1
{"C":2,"cmd":"ATSIV1"}
{"A":2,"err":0,"errMsg":"ok"}
{"R":2,"showScanIndex":true}
{"E":2,"nol":4}
ATSIV0
{"C":3,"cmd":"ATSIV0"}
{"A":3,"err":0,"errMsg":"ok"}
{"R":3,"showScanIndex":false}
{"E":3,"nol":4}

ATSRA

  • Turns showing resolved addr in scan results on/off. (Off per default).
CommandSyntax
ATSRAATSRA0
ATSRA1

Example:

Default Mode
Verbose Mode
ATSRA1
Show Resolved Addresses On!
ATSRA0
Show Resolved Addresses Off!
ATSRA1
{"C":0,"cmd":"ATSRA1"}
{"A":0,"err":0,"errMsg":"ok"}
{"R":0,"showResolvedAddresses":true}
{"E":0,"nol":4}
ATSRA0
{"C":1,"cmd":"ATSRA0"}
{"A":1,"err":0,"errMsg":"ok"}
{"R":1,"showResolvedAddresses":false}
{"E":1,"nol":4}

ATSAT

  • Turns on/off showing address types in scan results from AT+FINDSCANDATA and AT+SCANTARGET scans. (Off per default).
CommandSyntax
ATSATATSAT1
ATSAT0

AT+FINDSCANDATA results with ATSAT on

Default Mode
Verbose Mode
[[1]DD:9E:C5:BF:F6:8E] Device Data [ADV]: 0201061BFF5B0705040578E03D001527B800D301B90100000000000001B602
{"SF":6,"addr":"[1]DD:9E:C5:BF:F6:8E","type":0,"data":"0201061BFF5B0705040578E045001427B700D301A70000000000000001B503"}

AT+SCANTARGET results with ATSAT on

Default Mode
Verbose Mode
[[1]DD:9E:C5:BF:F6:8E] Device Data [ADV]: 0201061BFF5B0705040578E04A001427B700D301970100000000000001B801
{"ST":7,"addr":"[1]DD:9E:C5:BF:F6:8E","type":0,"data":"0201061BFF5B0705040578E04F001427B700D301970100000000000001B601"}

Example:

Default Mode
Verbose Mode
ATSAT1
SHOW ADDRESS TYPE ON
ATSAT0
SHOW ADDRESS TYPE OFF
ATSAT1
{"C":0,"cmd":"ATSAT1"}
{"A":0,"err":0,"errMsg":"ok"}
{"R":0,"showAddrType":true}
{"E":0,"nol":4}
ATSAT0
{"C":1,"cmd":"ATSAT0"}
{"A":1,"err":0,"errMsg":"ok"}
{"R":1,"showAddrType":false}
{"E":1,"nol":4}

AT+SUOTASTART

  • Enables the SUOTA Service and start the SUOTA Advertising.
    Cannot be started while connected/connecting or advertising.
CommandSyntax
AT+SUOTASTARTAT+SUOTASTART

Enables the SOUTA service and starts the SOUTA Advertising so that the user can update the BleuIO firmware over BLE (using App or another BleuIO Dongle with script).
Adverting and Scan Response Data can not be changed while SUOTA is enabled. Advertising cannot be stopped using AT+ADVSTOP.

To disable the SUOTA service and stop the SUOTA Advertising use the command AT+SUOTASTOP.

After a successful update the BleuIO Dongle will reset and the updateded firmware will start.

Example:

Default Mode
Verbose Mode
AT+SUOTASTART
OK
SUOTA STARTED...
AT+SUOTASTART
{"C":0,"cmd":"AT+SUOTASTART"}
{"A":0,"err":0,"errMsg":"ok"}
{"R":0,"info":"suota started"}
{"E":0,"nol":4}

AT+SUOTASTOP

  • Disables the SUOTA Service and stops the SUOTA Advertising.
    Cannot be used while connected/connecting.
CommandSyntax
AT+SUOTASTOPAT+SUOTASTOP

Example:

Default Mode
Verbose Mode
AT+SUOTASTOP
OK
SUOTA STOPPED.
AT+SUOTASTOP
{"C":1,"cmd":"AT+SUOTASTOP"}
{"A":1,"err":0,"errMsg":"ok"}
{"R":1,"info":"suota stopped"}
{"E":1,"nol":4}

AT+SERVER

  • Only usable in Dual role. Sets the dongle role towards the targeted connection to server.
CommandSyntax
AT+SERVERAT+SERVER

Example:

Default Mode
Verbose Mode
AT+SERVER
OK
AT+SERVER
{"C":29,"cmd":"AT+SERVER"}
{"A":29,"err":0,"errMsg":"ok"}
{"E":29,"nol":3}

AT+SETDIS

  • Sets the Device Information Service information.
CommandSyntax
AT+SETDISAT+SETDIS=<man_name>=<model_num>=<serial_num>=<hw_rev>=<fw_rev>=<sw_rev>

Sets information used in the Device Information Servie (DIS). Information can only be set before starting advertising. If no custom information is set, the default BleuIO device information will be used. Once advertising is started the information set to be used will be locked in and cannot be changed during runtime.

To change the device information again the dongle will need to be restarted, either by unplugging it and plugging it back in, or by using the ATR command.

Max length is 100 characters per parameter.

Example:

Default Mode
Verbose Mode
AT+SETDIS=MAN_NAME=MOD_NUM=SERIAL=HW_REV=FW_REV=SW_REV
DIS Service info is set!
AT+SETDIS=MAN_NAME=MOD_NUM=SERIAL=HW_REV=FW_REV=SW_REV
{"C":0,"cmd":"AT+SETDIS=MAN_NAME=MOD_NUM=SERIAL=HW_REV=FW_REV=SW_REV"}
{"A":0,"err":0,"errMsg":"ok"}
{"R":0,"action":"DIS service info is set"}
{"E":0,"nol":4}

AT+SETINDI

  • Enable indication for selected characteristic.
CommandSyntax
AT+SETINDIAT+SETINDI=(indication handle)

Which is the indication handle?

0011 char 6e400001-b5a3-f393-e0a9-e50e24dcca9e prop=20 (-----I--) # <-------- The I means that the Characteristic Properties has Indication
0012 ---- 6e400003-b5a3-f393-e0a9-e50e24dcca9e  # <--------- This (0012) is the handle you want to send in.
0013 desc 0x2902
  • If the status=0 in handle_evt_gattc_write_completed string, that means you have successfully written to it.

Example of a indication response

Default Mode
Verbose Mode
handle_evt_gattc_indication: conn_idx=0000 handle=0039 length=5

Value received: Hello # <---- ascii value (can be shown/hidden with the ATA command)
Hex: 0x48656C6C6F # <---- hex value
Size: 5
{778:"0000","0044":{"ascii":"TEST","len":4}} # <---- ascii value (can be shown/hidden with the ATA command)
{778:"0000","0044":{"hex":"0x54455354","len":4}}

Example:

Default Mode
Verbose Mode
AT+SETINDI=0012
handle_evt_gattc_write_completed: conn_idx=0000 handle=0013 status=0
AT+SETINDI=0021
{"C":4,"cmd":"AT+SETINDI=0021"}
{"A":4,"err":0,"errMsg":"ok"}
{"E":4,"nol":3}
{776:"0000","0022":{"writeStatus":0}} # <--- Event

AT+SETNOTI

  • Enable notification for selected characteristic.
CommandSyntax
AT+SETNOTIAT+SETNOTI=(notification handle)

Which is the notification handle?

0011 char 6e400001-b5a3-f393-e0a9-e50e24dcca9e prop=10 (----N---) # <-------- The N means that the Characteristic Properties has Notify
0012 ---- 6e400003-b5a3-f393-e0a9-e50e24dcca9e  # <--------- This (0012) is the handle you want to send in.
0013 desc 0x2902
  • If the status=0 in handle_evt_gattc_write_completed string, that means you have successfully written to it.

Example of a notification response

Default Mode
Verbose Mode
handle_evt_gattc_notification: conn_idx=0000 handle=0039 length=5

Value received: Hello # <---- ascii value (can be shown/hidden with the ATA command)
Hex: 0x48656C6C6F # <---- hex value
Size: 5
{777:"0000","0047":{"ascii":"TEST","len":4}} # <---- ascii value (can be shown/hidden with the ATA command)
{777:"0000","0047":{"hex":"0x54455354","len":4}}

Example:

Default Mode
Verbose Mode
AT+SETNOTI=0012
handle_evt_gattc_write_completed: conn_idx=0000 handle=0013 status=0
AT+SETNOTI=0021
{"C":8,"cmd":"AT+SETNOTI=0021"}
{"A":8,"err":0,"errMsg":"ok"}
{"E":8,"nol":3}
{776:"0000","0022":{"writeStatus":0}} # <--- Event

AT+SETPASSKEY

  • Setting or quering set passkey for passkey authentication.
CommandSyntax
AT+SETPASSKEY
AT+SETPASSKEY=xxxxxx
or
AT+SETPASSKEY

Example:

Default Mode
Verbose Mode
AT+SETPASSKEY=123456
PASSKEY: 123456

OK
AT+SETPASSKEY=222222
{"C":1,"cmd":"AT+SETPASSKEY=222222"}
{"A":1,"err":0,"errMsg":"ok"}
{"R":1,"passkey":"222222"}
{"E":1,"nol":4}
AT+SETPASSKEY
{"C":5,"cmd":"AT+SETPASSKEY"}
{"A":5,"err":0,"errMsg":"ok"}
{"R":5,"passkey":"222222"}
{"E":5,"nol":4}

AT+SETUOI

  • Set Unique Organization ID. It will be stored in flash memory, and will persist through power cycles. If set, the Unique Organization ID string will be displayed in the ATI command's response. Will clear any previous set Unique Organization ID when set. Max length: 100 characters.
CommandSyntax
AT+SETUOI
AT+SETUOI=id_string...

Example:

Default Mode
Verbose Mode
AT+SETUOI=Your Unique Organization ID
OK
ATI
Smart Sensor Devices
DA14683 (P25Q80LE)
BleuIO
Firmware Version: 2.7.6


Peripheral role


Not Connected


Advertising


Your Unique Organization ID
AT+SETUOI=Your Unique Organization ID
{"C":0,"cmd":"AT+SETUOI=Your Unique Organization ID"}
{"A":0,"err":0,"errMsg":"ok"}
{"E":0,"nol":3}
ATI
{"C":1,"cmd":"ATI"}
{"A":1,"err":0,"errMsg":"ok"}
{"R":1,"dev":"Smart Sensor Devices","hw":"DA14683 (P25Q80LE)","name":"BleuIO"}
{"R":1,"fwVer":"2.7.6","gap_role":"peripheral"}
{"R":1,"connected":false,"advertising":true}
{"R":1,"uoi":"Your Unique Organization ID"}
{"E":1,"nol":7}

AT+SHOWRSSI

  • Shows(1)/hides(0) RSSI in AT+FINDSCANDATA and AT+SCANTARGET scans. Hides RSSI by default.
CommandSyntax
AT+SHOWRSSIAT+SHOWRSSI=0 or 1


Example:

Default Mode
Verbose Mode
AT+SHOWRSSI=1
OK
AT+SHOWRSSI=0
{"C":6,"cmd":"AT+SHOWRSSI=0"}
{"A":6,"err":0,"errMsg":"ok"}
{"R":6,"showRssi":false}
{"E":6,"nol":4}
AT+SHOWRSSI=1
{"C":7,"cmd":"AT+SHOWRSSI=1"}
{"A":7,"err":0,"errMsg":"ok"}
{"R":7,"showRssi":true}
{"E":7,"nol":4}

AT+SPSSEND

  • Send a message or data via the SPS profile. Without parameters it opens a stream for continiously sending data.
CommandSyntax
AT+SPSSENDAT+SPSSEND=(message)
AT+SPSSEND

Example:

Default Mode
Verbose Mode
AT+SPSSEND=HELLO
[SENT]
AT+SPSSEND=TEST
{"C":11,"cmd":"AT+SPSSEND=TEST"}
{"A":11,"err":0,"errMsg":"ok"}
{"R":11,"target":"0000"}
{"E":11,"nol":4}
{776:"0000","SPS":{"writeStatus":0}} # <--- Event
AT+SPSSEND
{"C":12,"cmd":"AT+SPSSEND"}
{"A":12,"err":0,"errMsg":"ok"}
{"R":12,"action":"streaming","info":"to abort press ESC-key"}
{"E":12,"nol":4}

{"R":12,"action":"not streaming"}
# Recieved as Client
{777:"0000","SPS":{"ascii":"TEST","len":5}}
# Recieved as Server
{279:"0000","SPS":{"ascii":"TEST","len":5}}

AT+TXPWR Pro

  • Sets the TX output effect for advertsing, scan and/or initiate air operation .
CommandSyntax
AT+TXPWRAT+TXPWR=air operation=tx output parameters
AT+TXPWR

Air Operation Parameters

ParametersMeaning
1Advertise air operation
2Scan air operation
4Initiate air operation

TX Power Parameters

ParametersMeaning
176 dBm
165 dBm
154.5 dBm
144 dBm
133 dBm
122 dBm
111.5 dBm
100 dBm
9-1 dBm
8-2 dBm
7-3 dBm
6-6 dBm
5-8 dBm
4-12 dBm
3-18 dBm
2-22 dBm
1-26 dBm
0-50 dBm

Example:

Default Mode
Verbose Mode
AT+TXPWR=1=17
OK
AT+TXPWR
OK
ADV: 17 (6dBm)
SCAN: 10 (0dBm)
INIT: 10 (0dBm)
AT+TXPWR=1=17
{"C":21,"cmd":"AT+TXPWR=1=17"}
{"A":21,"err":0,"errMsg":"ok"}
{"E":21,"nol":3}
AT+TXPWR
{"C":22,"cmd":"AT+TXPWR"}
{"A":22,"err":0,"errMsg":"ok"}
{"R":22,"info":"tx pwr"}
{"R":22,"adv":"17 (6dBm)","scan":"10 (0dBm)","init":"10 (0dBm)"}
{"E":22,"nol":5}

AT+TARGETCONN

  • Setting or querying the connection index to use as the targeted connection.
    When connected to several devices, the target connection decides which device you target when using commands such as AT+GATTCREAD, AT+GATTCWRITE, AT+GAPDISCONNECT, AT+GETSERVICES, AT+GAPPAIR or AT+SPSSEND etc.
CommandSyntax
AT+TARGETCONN
AT+TARGETCONN=conn_idx
or
AT+TARGETCONN

Example:

Default Mode
Verbose Mode
AT+TARGETCONN=0000
OK
AT+TARGETCONN
{"C":14,"cmd":"AT+TARGETCONN"}
{"A":14,"err":0,"errMsg":"ok"}
{"R":14,"target":"0000"}
{"E":14,"nol":4}

AT+WAIT

  • Sets a timer to timeout after x seconds. No auto execute commands will be run while timer is running. Intended to be used in auto execute list.
CommandSyntax
AT+WAIT
AT+WAIT=seconds

Max value of timer is 3600 seconds (1 hour).

Example:

Default Mode
Verbose Mode
AT+WAIT=10
OK
USER WAIT TIMEOUT!
AT+WAIT=10
{"C":19,"cmd":"AT+WAIT=10"}
{"A":19,"err":0,"errMsg":"ok"}
{"E":19,"nol":3}
{283:"FFFF","evt":{"action":"user wait timeout"}}

--H

  • Shows all AT-Commands.
CommandSyntax
--H--H

Example:

Default Mode
Verbose Mode
--H
{List of all AT-Commands...}
...
AT
{"C":15,"cmd":"--H"}
{"A":15,"err":0,"errMsg":"OK"}
{"R":15,"cmd":"AT","help":"[A] Basic AT-Command."}
{"R":15,"cmd":"ATA","help":"[A] Shows/hides ascii values from notification/indication/read responses. ATA0 off, ATA1 on."}
# Displaying all help info
...
...
...
← Release History of BleuIO (SSD005)JavaScript Library →
  • AT
  • ATA
  • ATB Pro
  • ATASPS
  • ATASSN
  • ATASSM
  • ATDS
  • ATE
  • ATES Pro
  • ATEW
  • ATI
  • ATR
  • ATV
  • AT+ADVEXTPARAM Pro
  • AT+ADVEXTSTART Pro
  • AT+ADVEXTUPD Pro
  • AT+ADVDATA
  • AT+ADVDATAI
  • AT+ADVSTART
  • AT+ADVSTOP
  • AT+ADVRESP
  • AT+AUTOEXEC
  • AT+AUTOEXECLOOP
  • AT+CANCELCONNECT
  • AT+CENTRAL
  • AT+CLEARINDI
  • AT+CLEARNOTI
  • AT+CLIENT
  • AT+CLRAUTOEXEC
  • AT+CLRUOI
  • AT+CONNECTBOND
  • AT+CONNPARAM
  • AT+CONNSCANPARAM
  • AT+CUSTOMSERVICE
  • AT+CUSTOMSERVICESTART
  • AT+CUSTOMSERVICESTOP
  • AT+CUSTOMSERVICERESET
  • AT+DEVICENAME
  • AT+DIS
  • AT+DUAL
  • AT+ENTERPASSKEY
  • AT+FINDSCANDATA
  • AT+FRSSI
  • AT+GAPADDRTYPE
  • AT+GAPCONNECT
  • AT+GAPDISCONNECT
  • AT+GAPDISCONNECTALL
  • AT+GAPIOCAP
  • AT+GAPPAIR
  • AT+GAPUNPAIR
  • AT+GAPSCAN
  • AT+GAPSTATUS
  • AT+GATTCREAD
  • AT+GATTCWRITE
  • AT+GATTCWRITEB
  • AT+GATTCWRITEWR
  • AT+GATTCWRITEWRB
  • AT+GETBOND
  • AT+GETCONN
  • AT+GETMAC
  • AT+GETSERVICEDETAILS
  • AT+GETSERVICES
  • AT+GETSERVICESONLY
  • AT+INDI
  • AT+LED Pro
  • AT+MTU
  • AT+NOTI
  • AT+NUMCOMPA
  • AT+PERIPHERAL
  • AT+SCANFILTER
  • AT+SCANPARAM
  • AT+SCANTARGET
  • AT+SECLVL
  • ATSIV
  • ATSRA
  • ATSAT
  • AT+SUOTASTART
  • AT+SUOTASTOP
  • AT+SERVER
  • AT+SETDIS
  • AT+SETINDI
  • AT+SETNOTI
  • AT+SETPASSKEY
  • AT+SETUOI
  • AT+SHOWRSSI
  • AT+SPSSEND
  • AT+TXPWR Pro
  • AT+TARGETCONN
  • AT+WAIT
  • --H

Support Request

If you have any queries or technical questions, please don't hesitate to send us a message. We will reply within 24 hours.

Message Sent!

Docs
ManualAT CommandsHelp
Community
YouTubeLinkedInFacebook
More
BleuIOSmart Sensor DevicesGitHub
Sales & Support
support@bleuio.comsales@bleuio.com
Copyright © 2025 BleuIO. A product of Smart Sensor Devices
